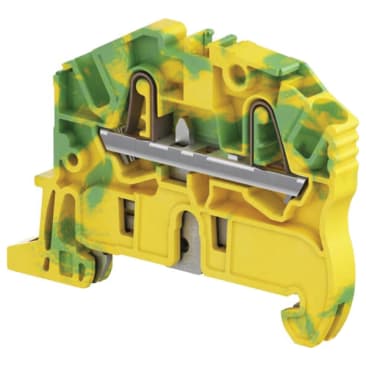

ZK2.5-PE GROUND TERMINAL BLOCK ABB 1SNK705150R0000
MFR Part #: 1SNK705150R0000
SKU #: 1122179
Brand: ABB
UPC: 888614180130
ABB 1SNK705150R0000 Terminal Block, 26 to 12 AWG Wire, DIN Rail Mount
ATEX Approved | cULus Recognized | CE Certified | CSA Certified | IECEx Certified | BV Certified | DNV Certified | EX ATEX Certified | UL 94 V-0 Flammability Rating | IEC 60529 | IEC 60947-1 | EN 60529 | RoHS Compliant
Product Details
Attributes
Features
Resources
ABB Terminal Block, Series: SNK, 26 to 12 AWG Wire, 11 mm Wire Strip Length, Spring Clamp Terminal, 5.2 mm Spacing, DIN Rail Mounting, PI Spring Connection, -55 to 110 deg C, Polyamide, Green/Yellow, 40.3 mm L x 5.2 mm W x 57.4 mm H Dimensions
Color:Green/Yellow
Material:Polyamide
Mounting Type:DIN Rail
Series:SNK
Spacing:5.2 mm
Temperature Rating:-55 to 110 deg C
Wire Strip Length:11 mm
- Improve the safety of your installation in the event of a short circuit thanks to our screwless rail contact rail contact non operator dependent
- Performances above the requirements of the IEC 60947-7-2 terminal block standard
- Secured snap-on or off the rail
- Profile aligned with ZK2.5
Product Details
ABB Terminal Block, Series: SNK, 26 to 12 AWG Wire, 11 mm Wire Strip Length, Spring Clamp Terminal, 5.2 mm Spacing, DIN Rail Mounting, PI Spring Connection, -55 to 110 deg C, Polyamide, Green/Yellow, 40.3 mm L x 5.2 mm W x 57.4 mm H Dimensions
Attributes
Color: Green/Yellow
Material: Polyamide
Mounting Type: DIN Rail
Series: SNK
Spacing: 5.2 mm
Temperature Rating: -55 to 110 deg C
Wire Strip Length: 11 mm
Features
- Improve the safety of your installation in the event of a short circuit thanks to our screwless rail contact rail contact non operator dependent
- Performances above the requirements of the IEC 60947-7-2 terminal block standard
- Secured snap-on or off the rail
- Profile aligned with ZK2.5
