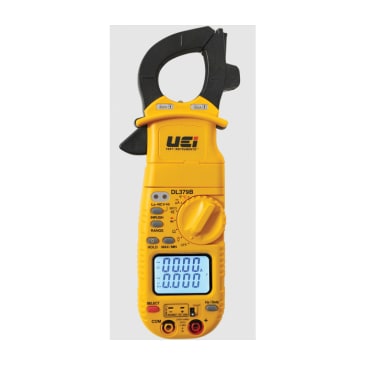

KANE DL379B Image 1

KANE KANE379B DIGITAL CLAMP METER WITH DUAL LEVEL NCV/CAT5 300V

MFR Part #: DL379B
SKU #: 1243726
Brand: Kane
UPC: 053533507171
UEi Test Instruments™ DL379B HVAC/R Digital Clamp Meter, 750 V AC/1000 V DC, 400 A AC, 2000 uA AC/DC, 2000 uF, 40 MOhm, 9.999 Hz to 199.9 kHz, 1.3 in Jaw, Dual Backlight LCD Display
3 years Limited
Test Leads, Batteries, Temperature Probe, Pouch/Carrying Case, Manual
Test diode malfunctions. Measure capacitance, voltage, microamps, circuit continuity, resistance Check system boards and live wires.
CE Certified | cULus Listed | IEC 61010-2-032

UEi Test Instruments™ HVAC/R Digital Clamp Meter, 750 V AC/1000 V DC, 400 A AC, 2000 uA AC/DC, 2000 uF Electrical Rating, 40 MOhm Resistance, 9.999 Hz to 199.9 kHz Frequency, 1.3 in Jaw, 4000 Count, Dual Backlight LCD Display, True RMS AC Response, +/-2.9 % +15 Digits to +/-1.9 % +8 Digits AC Current Accuracy, +/-2.0 % +5 Digits at VAC, +/-0.5 % +4 Digits to +/-0.8 % +10 Digits at VDC Voltage Accuracy, Safety Rating: CAT IV 300 V/CAT III 600 V, (2) AAA Batteries Power Source, -22 to 752 deg F Operating

The DL379B is the everyday Dual Display Clamp meter designed to measure 400A AC, 750V AC/1000V DC, temperauture, resistance, microamps, capacitance, diode test and includes magnetic mount, worklight and backlit dual display. The DL379B is rated to CATIV 300V under IEC 61010 3rd edition and backed by 3-Year limited warranty.

Product Details

UEi Test Instruments™ HVAC/R Digital Clamp Meter, 750 V AC/1000 V DC, 400 A AC, 2000 uA AC/DC, 2000 uF Electrical Rating, 40 MOhm Resistance, 9.999 Hz to 199.9 kHz Frequency, 1.3 in Jaw, 4000 Count, Dual Backlight LCD Display, True RMS AC Response, +/-2.9 % +15 Digits to +/-1.9 % +8 Digits AC Current Accuracy, +/-2.0 % +5 Digits at VAC, +/-0.5 % +4 Digits to +/-0.8 % +10 Digits at VDC Voltage Accuracy, Safety Rating: CAT IV 300 V/CAT III 600 V, (2) AAA Batteries Power Source, -22 to 752 deg F Operating

The DL379B is the everyday Dual Display Clamp meter designed to measure 400A AC, 750V AC/1000V DC, temperauture, resistance, microamps, capacitance, diode test and includes magnetic mount, worklight and backlit dual display. The DL379B is rated to CATIV 300V under IEC 61010 3rd edition and backed by 3-Year limited warranty.

Attributes

AC Current Accuracy: +/-2.9% +15 Digits to +/-1.9% +8 Digits
Counts: 4000
Display Type: Dual Backlit LCD
Electrical Ratings: 750 V AC/1000 V DC, 400 A AC, 2000 uA AC/DC, 2000 uF
Frequency Rating: 9.999 Hz to 199.9 kHz
Jaw Capacity: 1.3 in
Operating Temperature: -22 to 752 deg F
Power Source: (2) AAA Batteries
Resistance: 40 MOhm
Safety Rating: CAT IV 300 V/CAT III 600 V
Voltage Accuracy: +/-2.0 % +5 Digits at V AC, +/-0.5 % +4 Digits to +/-0.8 % +10 Digits at V DC

Features

  • Dual display
  • High contrast backlit display
  • Min/Max
  • Diode test
  • Input jack lock
  • Worklight
  • Low battery display
  • Test lead storage
  • Magnetic mount
  • User temperature calibration
  • NCV detection
  • Auto power off
  • Test lead holder on clamp head

Resources

Instruction/Installation Manual
Specification Sheet
