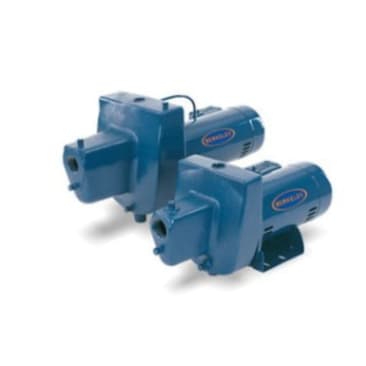

1/2 HP S.W. JET PUMP C.I. BERKELEY 5SN
MFR Part #: 5SN
SKU #: 1037885
Brand: BERKELEY
UPC: 400004536213
Berkeley SN Series 5SN Self-Priming Shallow Well Jet Pump, 115/230 V, 1/2 hp, 1 ph, 25 ft Max Feet of Head
For water systems and sprinkling homes, farms and cottages
Product Details
Attributes
Features
Resources
Berkeley Self-Priming Shallow Well Jet Pump, Series: SN, 1-1/4 in Suction, 1 in Discharge, 115/230 V, 1/2 hp, 1 ph, 25 ft Maximum Feet of Head, 140 deg F Maximum, Working Pressure: 50 psi, Noryl Impeller, Cast Iron Body, Cast Iron, 18.7 in L x 9-15/32 in W x 9-17/32 in H
Body Material:Cast Iron
Dimensions:18.7 in L x 9-15/32 in W x 9-17/32 in H
Discharge Size:1 in
HP Rating:1/2 hp
Impeller Material:Noryl
Material:Cast Iron
Maximum Feet of Head:25 ft
Maximum Temperature:140 deg F
Phase:1 ph
Series:SN
Suction Size:1-1/4 in
Voltage Rating:115/230 V
Working Pressure:50 psi
- ProJet SN Series pumps provide excellent performance with good pressure for wells to 25 ft D
- Self-priming after the priming chamber has been filled with water
- Quality close-grained cast iron body plus drain port provided for easy winterizing
- Built-in Lexan™ jet nozzle and venture for maximum resistance to corrosion and abrasion
- Clean out plug provided for ease of service
- Noryl impeller is precision molded for perfect balance ultra-smooth for highest performance and efficiency
- Precision molded diffuser means pump primes faster, handles more air with multi-port, precision molded, reinforced polypropylene diffuser
- Carbon ceramic mechanical shaft seal with stainless steel parts
- Superior insulation materials protect motor windings against excessive moisture and contamination
- Balanced rotor is die-cast under high pressures and dynamically balanced for uniform performance and greater efficiency
- Heavy-duty ball bearings are shielded and permanently lubricated to provide extended life and smooth quiet operation
- Stainless steel pump and motor shaft for maximum corrosion-resistance
- 1-piece threaded shaft for positive impeller drive and alignment
- Dust-proof cover protects all electrical components from dirt, dust and insects, ventilating air cannot contaminate vital switching components
- Professional quality pressure switch has adjustable cut-in with fixed differential of 20 psi
Product Details
Berkeley Self-Priming Shallow Well Jet Pump, Series: SN, 1-1/4 in Suction, 1 in Discharge, 115/230 V, 1/2 hp, 1 ph, 25 ft Maximum Feet of Head, 140 deg F Maximum, Working Pressure: 50 psi, Noryl Impeller, Cast Iron Body, Cast Iron, 18.7 in L x 9-15/32 in W x 9-17/32 in H
Attributes
Body Material: Cast Iron
Dimensions: 18.7 in L x 9-15/32 in W x 9-17/32 in H
Discharge Size: 1 in
HP Rating: 1/2 hp
Impeller Material: Noryl
Material: Cast Iron
Maximum Feet of Head: 25 ft
Maximum Temperature: 140 deg F
Phase: 1 ph
Series: SN
Suction Size: 1-1/4 in
Voltage Rating: 115/230 V
Working Pressure: 50 psi
Features
- ProJet SN Series pumps provide excellent performance with good pressure for wells to 25 ft D
- Self-priming after the priming chamber has been filled with water
- Quality close-grained cast iron body plus drain port provided for easy winterizing
- Built-in Lexan™ jet nozzle and venture for maximum resistance to corrosion and abrasion
- Clean out plug provided for ease of service
- Noryl impeller is precision molded for perfect balance ultra-smooth for highest performance and efficiency
- Precision molded diffuser means pump primes faster, handles more air with multi-port, precision molded, reinforced polypropylene diffuser
- Carbon ceramic mechanical shaft seal with stainless steel parts
- Superior insulation materials protect motor windings against excessive moisture and contamination
- Balanced rotor is die-cast under high pressures and dynamically balanced for uniform performance and greater efficiency
- Heavy-duty ball bearings are shielded and permanently lubricated to provide extended life and smooth quiet operation
- Stainless steel pump and motor shaft for maximum corrosion-resistance
- 1-piece threaded shaft for positive impeller drive and alignment
- Dust-proof cover protects all electrical components from dirt, dust and insects, ventilating air cannot contaminate vital switching components
- Professional quality pressure switch has adjustable cut-in with fixed differential of 20 psi
