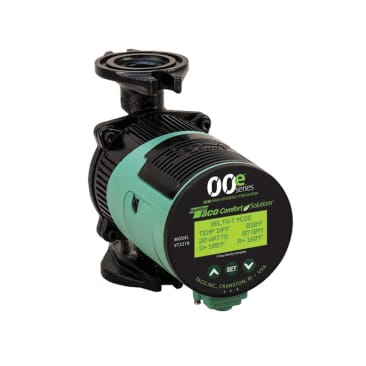

TACO VT2218-HY1-4C1A VIRIDIAN D-T VAR ECM CIRC-LS FLANGE 120V
Product Details
Attributes
Features
Resources
Taco Comfort Solutions® High Capacity Circulator Pump, 00e® Series, 18 gpm Flow Rate, 22 ft Maximum Head, 58 W, 120 V, 0.67 A, 50/60 Hz, 125 psi Maximum Pressure, 1650 to 4200 rpm Motor Speed Rating, 3/4 to 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 230 deg F, Ceramic Bearing, Iron, Additional Information: ECM, Electronically Protected, Permanent Magnet Motor, Non-Metallic Impeller Material
Taco 00e® Series VT2218 Delta-T variable speed circulator is a temperature sensing, self-adjusting, variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Operating modes include Delta-T differential temperature, four fixed speeds, set point heat, set point cool and boiler protection.
- Delta-T operation maximizes system efficiency and comfort
- High-efficiency ECM motor uses up to 85% less electricity
- Can save hundreds in fuel costs
- LCD displays operating mode, temperature or speed setting, watts, GPM and supply and return temperatures
- Easy-to-program and install
- Sure Start® automatic unblocking mode
- BIO Barrier® filter protects pump from system contaminants
- Easy access junction box and 6 in stranded wire leads for easy wiring
- Closed loop systems only
- Water or glycol concentrations up to 50%
Product Details
Taco Comfort Solutions® High Capacity Circulator Pump, 00e® Series, 18 gpm Flow Rate, 22 ft Maximum Head, 58 W, 120 V, 0.67 A, 50/60 Hz, 125 psi Maximum Pressure, 1650 to 4200 rpm Motor Speed Rating, 3/4 to 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 230 deg F, Ceramic Bearing, Iron, Additional Information: ECM, Electronically Protected, Permanent Magnet Motor, Non-Metallic Impeller Material
Taco 00e® Series VT2218 Delta-T variable speed circulator is a temperature sensing, self-adjusting, variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Operating modes include Delta-T differential temperature, four fixed speeds, set point heat, set point cool and boiler protection.
Attributes
Features
- Delta-T operation maximizes system efficiency and comfort
- High-efficiency ECM motor uses up to 85% less electricity
- Can save hundreds in fuel costs
- LCD displays operating mode, temperature or speed setting, watts, GPM and supply and return temperatures
- Easy-to-program and install
- Sure Start® automatic unblocking mode
- BIO Barrier® filter protects pump from system contaminants
- Easy access junction box and 6 in stranded wire leads for easy wiring
- Closed loop systems only
- Water or glycol concentrations up to 50%
