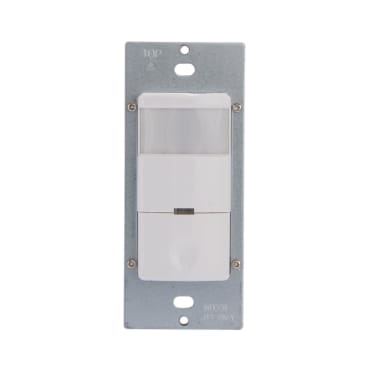

OCCUPANCY SENSOR INTERMATIC IOS-DOV-WH

Intermatic®, IOS-DOV-WH, Wall Mount Occupancy/Vacancy Sensor, Electronic Magnetic, Series: IOS-DOV, 120 V AC, 800 W Power, Passive Infrared Sensor, 1200 sq-ft Coverage, 180 deg Viewing, 15 s to 30 min Time Delay, LED Lamp, 50/60 Hz Response, Manual ON/OFF Pushbutton Control Output, Wall Mounting, 32 to 131 deg F, White, 1.63 in H x 1.69 in W x 1.3 in D Dimensions

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.
