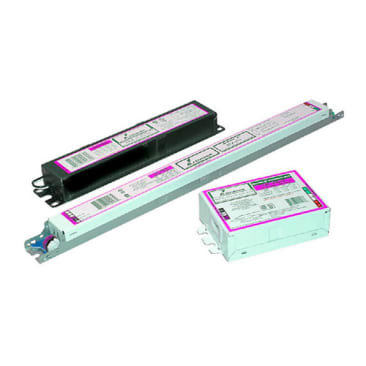

PHILIPS 120535 Image 1

ROVR DGTL ADDR BALLAST 42W CFL 4-PIN 120-277V PHILIPS 120535

MFR Part #: 120535
SKU #: 1116795
Brand: Signify | Advance
UPC: 781087029848
Advance IntelliVolt® ROVR 120535 Controllable Electronic Ballast, 42 W Lamp, 120 to 277 VAC, Programmed, 0.03 to 1 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
CEC Certified | CSA Certified | FCC Consumer Approved | UL Listed

Advance IntelliVolt® ROVR Ballast, Controllable Electronic, 42 W Lamp, 18 to 98 W Wattage, 120 to 277 VAC, 0.36 to 0.82 A, 50/60 Hz Frequency, Programmed Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 0.1, Power Factor: 0.99, Yes Dimmable, 2 Lamps, GX24q Lamp Base, Ballast Factor: 0.03 to 1, 70 deg C, Metal, 4.2 in L x 3 in W x 1.18 in H Dimensions

Philips Advance ROVR ballasts reflect the latest approach to controlling fluorescent lighting. Rather than simply responding to instructions from control components, ROVRballasts enable two way communication and have the ability to dim and switch individual ballasts through the control signal. These features allow for virtually unlimited design flexibility while creating sustainable lighting systems. This two way communication is made possible through the industry standard digital communication protocol known as DALI (Digital Addressable Lighting Interface). This protocol allows ROVR ballasts to provide users with operational data while controlling the output of individual luminaires. This fully supports sustainable design principles such as daylight harvesting and occupancy sensors while enabling a proactive response to maintenance concerns.

Product Details

Advance IntelliVolt® ROVR Ballast, Controllable Electronic, 42 W Lamp, 18 to 98 W Wattage, 120 to 277 VAC, 0.36 to 0.82 A, 50/60 Hz Frequency, Programmed Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 0.1, Power Factor: 0.99, Yes Dimmable, 2 Lamps, GX24q Lamp Base, Ballast Factor: 0.03 to 1, 70 deg C, Metal, 4.2 in L x 3 in W x 1.18 in H Dimensions

Philips Advance ROVR ballasts reflect the latest approach to controlling fluorescent lighting. Rather than simply responding to instructions from control components, ROVRballasts enable two way communication and have the ability to dim and switch individual ballasts through the control signal. These features allow for virtually unlimited design flexibility while creating sustainable lighting systems. This two way communication is made possible through the industry standard digital communication protocol known as DALI (Digital Addressable Lighting Interface). This protocol allows ROVR ballasts to provide users with operational data while controlling the output of individual luminaires. This fully supports sustainable design principles such as daylight harvesting and occupancy sensors while enabling a proactive response to maintenance concerns.

Attributes

Lamp Wattage42 W
Number of Lamps2
Wattage18 to 98 W
Amperage Rating0.36 to 0.82 A
Ballast Factor0.03 to 1
Dimensions4.2 in L x 3 in W x 1.18 in H
DimmableYes
Frequency Rating50/60 Hz
Lamp Base TypeGX24q
MaterialMetal
Minimum Starting Temperature50 deg F
Power Factor.99
Start TypeProgrammed
Temperature Range70 deg C
Total Harmonic Distortion.1
TypeControllable Electronic
Voltage Rating120 to 277 V AC

Features

  • Length mounting feet with SmartMate dual entry color coded connectors
