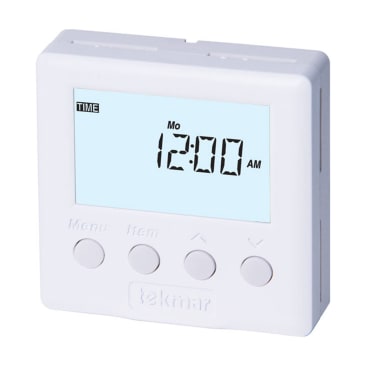

TEKMAR 033 Image 1

TEKMAR 033 NET 4 TIMER

MFR Part #: 033
SKU #: 1193303
Brand: WATTS® | Tekmar®
UPC: 779655003307
Tekmar® tekmarNet® 033 tekmarNet®4 Timer, 24 V AC
3 Years Limited
CSA/cUS Certified | Meets Class B: ICES and FCC Part 15

Tekmar® tekmarNet® tekmarNet®4 Timer, 24 V AC, 2 A, 2 or 4 Pulse Events, LCD, NEMA Type 1 Enclosure, 2-7/8 in W x 13/16 in D x 2-7/8 in H

The tekmarNet®4 Timer 033 provides a programmable setback schedule for an entire tekmarNet® system. It maintains time and communicates up to 4 schedules on the network that up to 96 tekmarNet® thermostats can follow. This product can also be used in stand alone applications.

Product Details

Tekmar® tekmarNet® tekmarNet®4 Timer, 24 V AC, 2 A, 2 or 4 Pulse Events, LCD, NEMA Type 1 Enclosure, 2-7/8 in W x 13/16 in D x 2-7/8 in H

The tekmarNet®4 Timer 033 provides a programmable setback schedule for an entire tekmarNet® system. It maintains time and communicates up to 4 schedules on the network that up to 96 tekmarNet® thermostats can follow. This product can also be used in stand alone applications.

Attributes

Amperage Rating: 2 A
Dimensions: 2-7/8 in W x 13/16 in D x 2-7/8 in H
Display Type: LCD
Enclosure Type: NEMA Type 1
Voltage Rating: 24 V AC
Number of Pulse Events: 2 or 4

Features

  • 2 or 4 event schedules
  • Daylight savings time
  • Battery-less backup
  • Provides a setback schedule for all network devices
  • Relay contact to signal other devices of setback
  • tekmarNet® 4 and tekmarNet® 2 compatible
  • White PVC plastic enclosure
  • Control - Microprocessor-based, this is not a safety (limit) device

Resources

Instruction/Installation Manual
Specification Sheet
