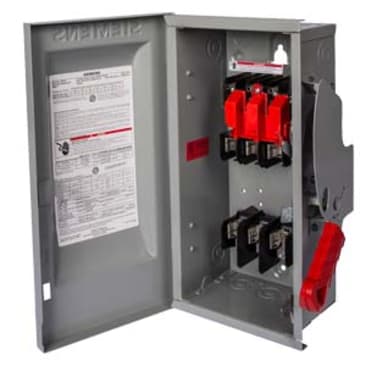

HEAVY DUTY 3R 100A 2P 240V FUSED DISCONNECT SIEMENS HFC223NR
MFR Part #: HFC223NR
SKU #: 1089259
Brand: Siemens
UPC: 783643221529
Siemens HFC223NR Fusible Enclosed Safety Switch, Heavy Duty Rating, 240 V, 100 A, 2 -Pole, 30 hp, 3 -Wire, Hole Mounting
For outdoor
CSA Certified
Product Details
Attributes
Features
Resources
Siemens Fusible Enclosed Safety Switch, Duty Rating: Heavy, 240 V, 100 A, 60 Hz, 2 Pole, 30 hp HP Rating, DPST, With Neutral With Neutral/Without Neutral, 3 Wires, Lug Electrical Connection Type, NEMA 3R, -20 to 120 deg F, Hole Mount, Stainless Steel, 21.95 in H x 9.64 in W x 5.05 in D, 2 Number of Fuses
Amperage Rating:100 A
Enclosure Type:NEMA 3R
Number of Poles:2
Contact Configuration:DPST
Dimensions:21.95 in H x 9.64 in W x 5.05 in D
Duty Rating:Heavy
Electrical Connection Type:Lug
Frequency Rating:60 Hz
HP Rating:30 hp
Material:Stainless Steel
Mounting Type:Hole
Number of Fuses:2
Number of Wires:3
Temperature Rating:-20 to 120 deg F
Voltage Rating:240 V
With Neutral/Without Neutral:With Neutral
- Quick-make, quick-break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip, designed for hook stick operation
- Defeatable dual cover interlock
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to 3 padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed CEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens past 180 deg for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for Cu/AI 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy-duty switches
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy 2 or 3 point mounting
Product Details
Siemens Fusible Enclosed Safety Switch, Duty Rating: Heavy, 240 V, 100 A, 60 Hz, 2 Pole, 30 hp HP Rating, DPST, With Neutral With Neutral/Without Neutral, 3 Wires, Lug Electrical Connection Type, NEMA 3R, -20 to 120 deg F, Hole Mount, Stainless Steel, 21.95 in H x 9.64 in W x 5.05 in D, 2 Number of Fuses
Attributes
Amperage Rating: 100 A
Enclosure Type: NEMA 3R
Number of Poles: 2
Contact Configuration: DPST
Dimensions: 21.95 in H x 9.64 in W x 5.05 in D
Duty Rating: Heavy
Electrical Connection Type: Lug
Frequency Rating: 60 Hz
HP Rating: 30 hp
Material: Stainless Steel
Mounting Type: Hole
Number of Fuses: 2
Number of Wires: 3
Temperature Rating: -20 to 120 deg F
Voltage Rating: 240 V
With Neutral/Without Neutral: With Neutral
Features
- Quick-make, quick-break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip, designed for hook stick operation
- Defeatable dual cover interlock
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to 3 padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed CEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens past 180 deg for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for Cu/AI 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy-duty switches
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy 2 or 3 point mounting
