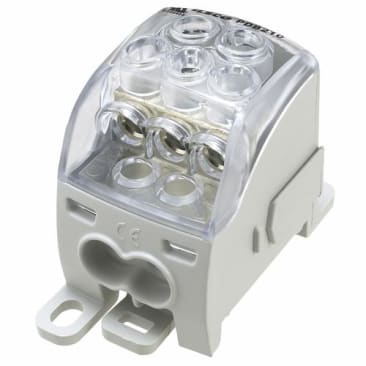

PWR DIST BLOCK 115AMP TOUCH SAFE ILSCO PDB-210
MFR Part #: PDB-210
SKU #: 1218553
Brand: ILSCO®
UPC: 783669594980
ILSCO® Touch Safe PDB-210 Type PDB Power Distribution Block, 600 V AC, 115 A, 1 Pole, 12 to 2 AWG/16 to 6 AWG Line, 16 to 6 AWG/14 to 4 AWG Load Wire, Copper Alloy
Transparent Cover
For used in confined space
UL 1059 | IEC 60947-7-1 | UL Recognized | CE Certified | VDE Approved | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Product Details
Attributes
Features
Resources
ILSCO® Touch Safe Power Distribution Block, Type PDB, 600 V AC, 115 A, 1 Pole, 2 Primary Connections/Pole, 5 Secondary Connection/Pole, 12 to 2 AWG/16 to 6 AWG Line, 16 to 6 AWG/14 to 4 AWG Load Wire, Class J/T/RK1/RK5/G/CC Fuse, 100/200 kA Short Circuit, Copper Alloy, Electro Nickel/Tin Plated, Clear, 2.756 in L x 2.114 in W x 1.461 in H Dimensions
Amperage Rating:115 A
Color:Clear
Dimensions:2.756 in L x 2.114 in W x 1.461 in H
Finish:Electro Nickel/Tin Plated
Fuse Type:Class J/T/RK1/RK5/G/CC
Material:Copper Alloy
Number of Poles:1
Primary Connections/Pole:2
Secondary Connection/Pole:5
Short Circuit Current Rating:100/200 kA
Type:Type PDB
Voltage Rating:600 V AC
Wire Size:12 to 2 AWG/16 to 6 AWG Line, 16 to 6 AWG/14 to 4 AWG Load
- Manufactured from high strength copper alloy
- IP20 touch safe protection
- Compact size
- High short circuit rated (SCCR)
- Surface or DIN rail mountable
- Minimizes risk of electrical shock
- Aids visual inspection
- Added protection
- Provides low contact resistance
- Easily mounts into new or existing enclosure
- Connects two or three PDB's, eliminates need for multiple wire inputs
- (1) 12 to 2 AWG (1) 16 to 6 AWG line, (3) 16 to 6 AWG (2) 14 to 4 AWG load UL rated conductor range
- (1) 12 to 2 AWG line, (3) 16 to 6 AWG (2) 14 to 4 AWG load high SCCR conductor range
Product Details
ILSCO® Touch Safe Power Distribution Block, Type PDB, 600 V AC, 115 A, 1 Pole, 2 Primary Connections/Pole, 5 Secondary Connection/Pole, 12 to 2 AWG/16 to 6 AWG Line, 16 to 6 AWG/14 to 4 AWG Load Wire, Class J/T/RK1/RK5/G/CC Fuse, 100/200 kA Short Circuit, Copper Alloy, Electro Nickel/Tin Plated, Clear, 2.756 in L x 2.114 in W x 1.461 in H Dimensions
Attributes
Amperage Rating: 115 A
Color: Clear
Dimensions: 2.756 in L x 2.114 in W x 1.461 in H
Finish: Electro Nickel/Tin Plated
Fuse Type: Class J/T/RK1/RK5/G/CC
Material: Copper Alloy
Number of Poles: 1
Primary Connections/Pole: 2
Secondary Connection/Pole: 5
Short Circuit Current Rating: 100/200 kA
Type: Type PDB
Voltage Rating: 600 V AC
Wire Size: 12 to 2 AWG/16 to 6 AWG Line, 16 to 6 AWG/14 to 4 AWG Load
Features
- Manufactured from high strength copper alloy
- IP20 touch safe protection
- Compact size
- High short circuit rated (SCCR)
- Surface or DIN rail mountable
- Minimizes risk of electrical shock
- Aids visual inspection
- Added protection
- Provides low contact resistance
- Easily mounts into new or existing enclosure
- Connects two or three PDB's, eliminates need for multiple wire inputs
- (1) 12 to 2 AWG (1) 16 to 6 AWG line, (3) 16 to 6 AWG (2) 14 to 4 AWG load UL rated conductor range
- (1) 12 to 2 AWG line, (3) 16 to 6 AWG (2) 14 to 4 AWG load high SCCR conductor range
