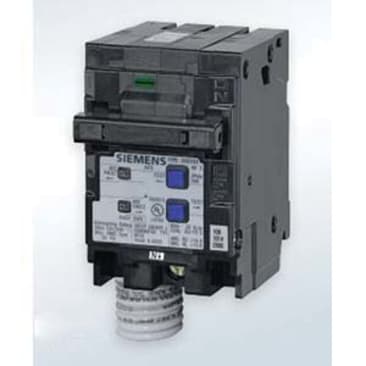

2P COMBO AFCI BREAKER 20A 22KA SIEMENS Q220AFCH
MFR Part #: Q220AFCH
SKU #: 1133678
Brand: Siemens
UPC: 040892148923
Siemens Q220AFCH Combination AFCI Circuit Breaker, 120 VAC, 20 A, 22 kA Interrupt, 2 -Pole, Thermal Magnetic Trip
Circuit Protection Load Center Mains, Feeders and Miniature Circuit Breakers
Residential Applications
HACR Rated | SWD Rated | UL 1699
Product Details
Attributes
Features
Resources
Siemens Combination AFCI Circuit Breaker, 20 A, 120 VAC, 22 kA Interrupt Rating, 2 Poles, 1 ph Phase, Plug-In Connection, QAFH Frame, Thermal Magnetic Trip, Load Side Lug Terminal, 14 to 8 AWG, 12 to 8 AWG Wire, 2 in Width, 3 in Length, 3 in Height
Amperage Rating:20 A
Number of Poles:2
Connection Type:Plug-In
Frame Type:QAFH
Height:3 in
Interrupt Rating:22 kA
Length:3 in
Phase:1 ph
Terminal Type:Load Side Lug
Trip Type:Thermal Magnetic
Voltage Rating:120 VAC
Width:2 in
Wire Size:14 to 8 AWG, 12 to 8 AWG
- New and improved electronics
- 1/4 in more wiring bend space than our previous design
- Both lugs at the same angle for easier wiring
- Plug-in or bolt-on branch circuit breakers for Siemens single phase load centers or panel boards
- LED trip indicator
Product Details
Siemens Combination AFCI Circuit Breaker, 20 A, 120 VAC, 22 kA Interrupt Rating, 2 Poles, 1 ph Phase, Plug-In Connection, QAFH Frame, Thermal Magnetic Trip, Load Side Lug Terminal, 14 to 8 AWG, 12 to 8 AWG Wire, 2 in Width, 3 in Length, 3 in Height
Attributes
Amperage Rating: 20 A
Number of Poles: 2
Connection Type: Plug-In
Frame Type: QAFH
Height: 3 in
Interrupt Rating: 22 kA
Length: 3 in
Phase: 1 ph
Terminal Type: Load Side Lug
Trip Type: Thermal Magnetic
Voltage Rating: 120 VAC
Width: 2 in
Wire Size: 14 to 8 AWG, 12 to 8 AWG
Features
- New and improved electronics
- 1/4 in more wiring bend space than our previous design
- Both lugs at the same angle for easier wiring
- Plug-in or bolt-on branch circuit breakers for Siemens single phase load centers or panel boards
- LED trip indicator
