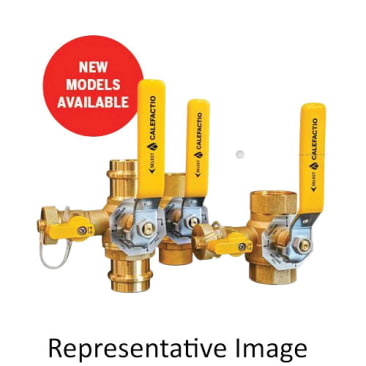

CALEFACTIO BD075N Image 1

CALEFACTIO BD075N 3/4 FIP BALL VLV W/ HIGH-FLOW DRAIN

MFR Part #: BD075N
SKU #: 1310298
Brand: Calefactio
UPC: 628235835732
Calefactio BD075N Ball Valve With High-Flow Drain, 3/4 in, NPT, 250 psi, Handle, Brass, Lead-Free
cUPC Certified|NSF 61-8

Calefactio Ball Valve, 3/4 in Nominal, NPT Connection, Full Port, 250 psi, Handle Operator, PTFE Seat, EPDM Seal, Brass, Lead-Free, 2-1/2 in L

Calefactio's new ball valve with high-flow drain make it easy to isolate and drain any section of the system, simplifying maintenance and service work. A new integrated flow-direction plate, combined with a 270 deg rotating handle, allows drainage from both sides and makes operation easier in the field. Their compact full-port design helps reduce pressure drop and debris buildup.

Product Details

Calefactio Ball Valve, 3/4 in Nominal, NPT Connection, Full Port, 250 psi, Handle Operator, PTFE Seat, EPDM Seal, Brass, Lead-Free, 2-1/2 in L

Calefactio's new ball valve with high-flow drain make it easy to isolate and drain any section of the system, simplifying maintenance and service work. A new integrated flow-direction plate, combined with a 270 deg rotating handle, allows drainage from both sides and makes operation easier in the field. Their compact full-port design helps reduce pressure drop and debris buildup.

Attributes

Connection Type: NPT
Nominal Size: 3/4 in
Operator Type: Handle
Pressure Rating: 250 psi
Dimensions: 2-1/2 in L
Lead-Free/Contains Lead: Lead-Free
Material: Brass
Port Type: Full
Seal Material: EPDM
Seat Material: PTFE

Features

  • Full port brass valve
  • High-flow drain (3/8")
  • Handle that swivels up to 270 deg
  • Seat: PTFE
  • O-ring: EPDM
  • Nominal pressure: 250 PSI
  • Connection: Sweat, Press and NPT, 3/4" to 2"

Resources

Catalog
Owners/User Manual
Specification Sheet
