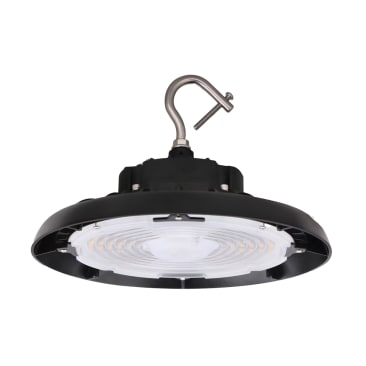

EIKO 13168 BAYE3-PS240-FCCT-H 180-240W 3CCT ROUND DIMMABLE LED HIGH BAY LIGHT BLACK

MFR Part #: 13168
SKU #: 1299996
Brand: EIKO®
UPC: 031293131683
EIKO® 13168 Value High Bay, 120-347 VAC, 36000/30000/27000 Lumens, 3500/4000/5000 K, Cone Lens, Hook Mounting
5 Year Limited
This product may be subject to ecological fees.
Mounting Hook, 10 ft Power and Dimming Cords and Controls Ready Capabilities
Warehouses, Manufacturing Plants, Distribution Centers, Grocery Stores, Gymnasiums, Indoor Recreational Facilities, Big Box Retail and Service Repair Centers Applications
CAN-ICES 005|DLC Listed|FCC Approved|RoHS Compliant|UL Listed|Wet Location Rated

EIKO® Value High Bay, 120-347 VAC, Round Fixture, 240/200/180 W Bulb Wattage, 36000/30000/27000 Lumens, 3500/4000/5000 K, 80+ CRI, 100000 hr Average Life, Dimmable, Cone Lens, Polycarbonate Lens, Aluminum Fixture, Matte Black Fixture, Hook Mounting, IP65 Enclosure, 12-13/16 in Dia x 6-1/2 in H, Additional Information: -40 to 122 deg F Operating Temperature

The BAYE3 round high bay is ideal for everyday lighting projects with mid-power requirements up to 240W and 120-347V input voltage. It features power and color select technology, easy installation with included mounting hook, 10' power and dimming cords, and controls ready capabilities. The BAYE3 delivers performance at a cost-effective price point ideal for budget-conscious projects.

Product Details

EIKO® Value High Bay, 120-347 VAC, Round Fixture, 240/200/180 W Bulb Wattage, 36000/30000/27000 Lumens, 3500/4000/5000 K, 80+ CRI, 100000 hr Average Life, Dimmable, Cone Lens, Polycarbonate Lens, Aluminum Fixture, Matte Black Fixture, Hook Mounting, IP65 Enclosure, 12-13/16 in Dia x 6-1/2 in H, Additional Information: -40 to 122 deg F Operating Temperature

The BAYE3 round high bay is ideal for everyday lighting projects with mid-power requirements up to 240W and 120-347V input voltage. It features power and color select technology, easy installation with included mounting hook, 10' power and dimming cords, and controls ready capabilities. The BAYE3 delivers performance at a cost-effective price point ideal for budget-conscious projects.

Attributes

Average Life: 100000 hr
Color Rendering Index (CRI): 80+
Color Temperature: 3500/4000/5000 K
Dimensions: 12-13/16 in Dia x 6-1/2 in H
Dimmable/Non-Dimmable: Dimmable
Lumens: 36000/30000/27000 Lumens
Mounting Type: Hook
Voltage Rating: 120-347 VAC
Additional Information: -40 to 122 deg F Operating Temperature
Bulb Wattage: 240/200/180 W
Enclosure Type: IP65
Fixture Finish: Matte Black
Fixture Material: Aluminum
Fixture Shape: Round
Lens Material: Polycarbonate
Lens Type: Cone

Features

  • Power & Color Select for simplified inventory management and field customization
  • PowerSET - 3 Power settings
  • ColorSET - 3 CCT settings (3500K/4000/5000K)
  • Input voltage:
  • 120-277V for US
  • 120-347V for Canada
  • Lumen packages (15,000 - 36,000 lumens) provide solutions for mounting heights up to 35'
  • Die cast aluminum housing and impact resistant lens for durable construction
  • Available in matte black or white powder coat paint finish
  • Technical performance:
  • CRI >80
  • Beam angle - 90deg
  • Efficacy up to 150 LPW
  • Lumen Maintenance 70% (L70) at > 100,000Hrs
  • THD <20%, Power Factor >0.9
  • Surge Protection: 6kV included
  • All products are DesignLights Consortium® (DLC) Premium listed
