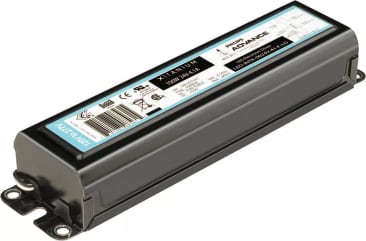

PHILIPS LEDINTA0700C210DOM Image 1

PHILIPS 291872 LEDINTA0700C210DOM 150W 0.70A INTELLIV ROHS

MFR Part #: LEDINTA0700C210DOM
SKU #: 1116555
Brand: Signify | Advance
UPC: 781087070192
Advance Xitanium Intellivolt LEDINTA0700C210DOM Constant Current LED Driver, 120 to 277 V AC Input, 210 VDC Output, 165 W Power Rating, 8.38 in L x 2.35 in W
This product may be subject to ecological fees.
CSA Certified | RoHS Compliant | UL Listed

Advance Xitanium Intellivolt LED Driver, Constant Current, 120 to 277 V AC Input, 210 VDC Output, 165 W Power, 0.6 to 1.4 A, Power Factor: 0.9, 8.38 in Length, 2.35 in Width, 1.47 in Height, -40 deg C

These drivers are available in wattages of 40 to 150 W for hard wired integration into outdoor luminaires for the most rugged applications. They operate to specification under wide temperature and electrical ranges to ensure reliability.

Product Details

Advance Xitanium Intellivolt LED Driver, Constant Current, 120 to 277 V AC Input, 210 VDC Output, 165 W Power, 0.6 to 1.4 A, Power Factor: 0.9, 8.38 in Length, 2.35 in Width, 1.47 in Height, -40 deg C

These drivers are available in wattages of 40 to 150 W for hard wired integration into outdoor luminaires for the most rugged applications. They operate to specification under wide temperature and electrical ranges to ensure reliability.

Attributes

Amperage Rating: 0.6 to 1.4 A
Country Of Origin: Mexico
Height: 1.47 in
Input Voltage: 120 to 277 V AC
Length: 8.38 in
Output Voltage: 210 V DC
Power Factor: .9
Power Rating: 165 W
Temperature Rating: -40 deg C
Type: Constant Current
Width: 2.35 in

Features

  • 150 W output power
  • 0.7 A output current
  • 20% total harmonic distortion

Resources

Specification Sheet
