24HR / 7D ELEC SPDT/DPDT TIME SWITCH INTERMATIC GM40AVE
MFR Part #: GM40AVE
SKU #: 1112033
Brand: Intermatic®
UPC: 078275123762

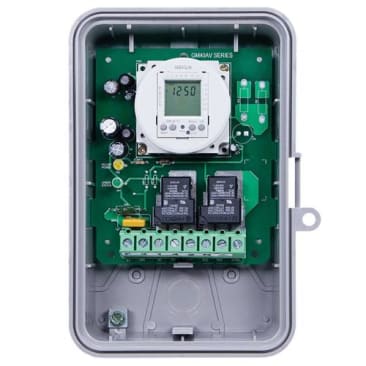

Intermatic® Grasslin® GM40AVE Auto Voltage Electronic Timer Switch, 1 min to 24 hr/7 days Setting, 120 to 208/240/277 VAC, 1, 2 hp, 2NO-2NC 2 Form C DPDT Contact, 1 Poles
General Purpose, Lighting, HVACR, Pumps, Motors, Fans, Access Controls, Agricultural , Indoor and Outdoor Applications
cULus Listed | HVACR Approved | Title CA 20 Listed
Product Details
Attributes
Features
Resources
Intermatic® Grasslin® Electronic Timer Switch, Auto Voltage, Operation Mode: 24 hr/7 days, 120 to 208/240/277 VAC, 40 A, 1, 2 hp, 1 Pole, 2NO-2NC 2 Form C DPDT Contact Form, 1 min to 24 hr/7 days Time Setting, 20 Pulse Events, LCD Display, Screw Electrical Connections, NEMA 3R Enclosure, -40 to 131 deg F, Wall Mounting, 22.56 mm H x 16.79 mm W x 76.62 mm D Dimensions
Amperage Rating:40 A
Contact Form:2NO-2NC 2 Form C DPDT
Display Type:LCD
Electrical Connections:Screw
Enclosure Type:NEMA 3R
Horsepower:1, 2 hp
Mounting Type:Wall
Number of Poles:1
Number of Pulse Events:20
Operation Mode:24 hr/7 days
Temperature Rating:-40 to 131 deg F
Time Setting:1 min to 24 hr/7 days
Type:Auto Voltage
Voltage Rating:120 to 208/240/277 VAC
- Power and status LED indicators
- 20 set point programs
- 3-preset adjustable block programs
- Easy to follow, menu driven programming
- Lithium battery backup with 7-year carryover
- Temporary manual override with load status indication
- Auto voltage selection 120 VAC through 277 VAC
- Type 3R outdoor enclosure with lockable hasp
- 0 to 95% RH non-condensing environmental condition
- 40 A at 120 to 277 VAC (resistive NO), 30 A at 120 VAC (ballast NO), 20 A at 277 VAC (ballast NO), 15 A at 120 VAC (tungsten NO), 30 A at 120 - 277 VAC (resistive NC), 2 A at 120 VAC (tungsten NC), 10 A at 277 VAC (ballast NC)
- 50/60 Hz frequency
- 1 hp at 120 VAC, 2 hp at 208/277 VAC, 2 hp at 240 VAC motor power
- 120 to 208/240/277 VAC
- 50000 cycle
Product Details
Intermatic® Grasslin® Electronic Timer Switch, Auto Voltage, Operation Mode: 24 hr/7 days, 120 to 208/240/277 VAC, 40 A, 1, 2 hp, 1 Pole, 2NO-2NC 2 Form C DPDT Contact Form, 1 min to 24 hr/7 days Time Setting, 20 Pulse Events, LCD Display, Screw Electrical Connections, NEMA 3R Enclosure, -40 to 131 deg F, Wall Mounting, 22.56 mm H x 16.79 mm W x 76.62 mm D Dimensions
Attributes
Amperage Rating: 40 A
Contact Form: 2NO-2NC 2 Form C DPDT
Display Type: LCD
Electrical Connections: Screw
Enclosure Type: NEMA 3R
Horsepower: 1, 2 hp
Mounting Type: Wall
Number of Poles: 1
Number of Pulse Events: 20
Operation Mode: 24 hr/7 days
Temperature Rating: -40 to 131 deg F
Time Setting: 1 min to 24 hr/7 days
Type: Auto Voltage
Voltage Rating: 120 to 208/240/277 VAC
Features
- Power and status LED indicators
- 20 set point programs
- 3-preset adjustable block programs
- Easy to follow, menu driven programming
- Lithium battery backup with 7-year carryover
- Temporary manual override with load status indication
- Auto voltage selection 120 VAC through 277 VAC
- Type 3R outdoor enclosure with lockable hasp
- 0 to 95% RH non-condensing environmental condition
- 40 A at 120 to 277 VAC (resistive NO), 30 A at 120 VAC (ballast NO), 20 A at 277 VAC (ballast NO), 15 A at 120 VAC (tungsten NO), 30 A at 120 - 277 VAC (resistive NC), 2 A at 120 VAC (tungsten NC), 10 A at 277 VAC (ballast NC)
- 50/60 Hz frequency
- 1 hp at 120 VAC, 2 hp at 208/277 VAC, 2 hp at 240 VAC motor power
- 120 to 208/240/277 VAC
- 50000 cycle
