24HR/7DAY ELECT TIMER 120VAC SPDT 16A INTERMATIC FM1D50A-120
Product Details
Attributes
Features
Resources

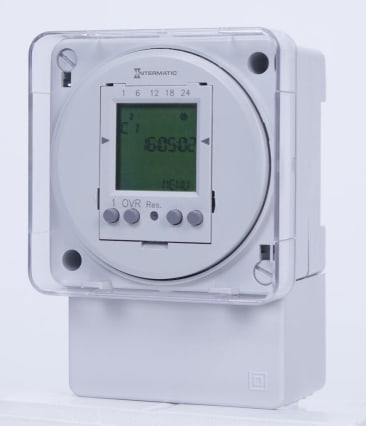

Intermatic® Electronic Timer, Digital, Series: FM1D50, 120 V AC, 16 A, 1 hp, 1 Pole, 1 Channel, 1 Form C SPDT, 24 hr/7 Day, LCD, -13 to 131 deg F, DIN Rail/Surface Mount, 102.5 mm H x 72 mm W x 52 mm D
The FM1D50 series electronic time-based controls enable switching of ventilation, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one time switches are programmable for 24 hr or 7 day schedules. They are intended for panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail models (A and E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and sub base for installation and hard wiring.
- 50 Setpoint programs
- Two preset adjustable block programs
- Easy-to-follow menu driven programming
- Manual override with status indication
- Battery backup
Product Details
Intermatic® Electronic Timer, Digital, Series: FM1D50, 120 V AC, 16 A, 1 hp, 1 Pole, 1 Channel, 1 Form C SPDT, 24 hr/7 Day, LCD, -13 to 131 deg F, DIN Rail/Surface Mount, 102.5 mm H x 72 mm W x 52 mm D
The FM1D50 series electronic time-based controls enable switching of ventilation, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one time switches are programmable for 24 hr or 7 day schedules. They are intended for panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail models (A and E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and sub base for installation and hard wiring.
Attributes
Features
- 50 Setpoint programs
- Two preset adjustable block programs
- Easy-to-follow menu driven programming
- Manual override with status indication
- Battery backup
