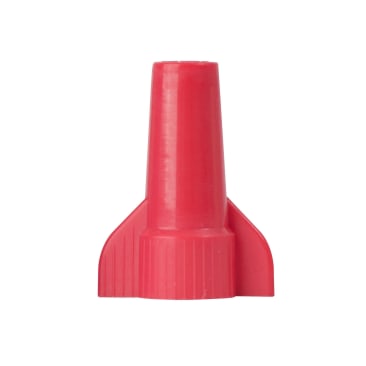

WINGGARD ULTRA RED 86 GB 10-086 (100/CRTN)
Product Details
Attributes
Features
Resources
Gardner Bender, 10-086, Twist-On Wire Connector, High Leverage, Series: 86 Series, Winged Shell Style, Square Spring, Aluminum/Copper Wire, 22 to 6 AWG Wire, 300/600 V AC, Specifications: 9/32 in Top Dia, 105 deg C, Thermoplastic Shell, Red, Zinc Plated, 0.4375 in ID x 0.91 in OD x 1.25 in L Dimensions
GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that onesize can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
- Wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design
- 100/Box
- Wiring Connectors
- Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
- Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
- High dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
- Thermoplastic shell provides strength and resistance to chemicals and high temperature with zinc plated spring
- Square-wire plated spring instantly adjusts to the shape and size of the splice, secure connections for positive continuity
- (2) 20 AWG - (4) 10 AWG wire combinations
Product Details
Gardner Bender, 10-086, Twist-On Wire Connector, High Leverage, Series: 86 Series, Winged Shell Style, Square Spring, Aluminum/Copper Wire, 22 to 6 AWG Wire, 300/600 V AC, Specifications: 9/32 in Top Dia, 105 deg C, Thermoplastic Shell, Red, Zinc Plated, 0.4375 in ID x 0.91 in OD x 1.25 in L Dimensions
GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that onesize can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
Attributes
Features
- Wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design
- 100/Box
- Wiring Connectors
- Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
- Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
- High dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
- Thermoplastic shell provides strength and resistance to chemicals and high temperature with zinc plated spring
- Square-wire plated spring instantly adjusts to the shape and size of the splice, secure connections for positive continuity
- (2) 20 AWG - (4) 10 AWG wire combinations
