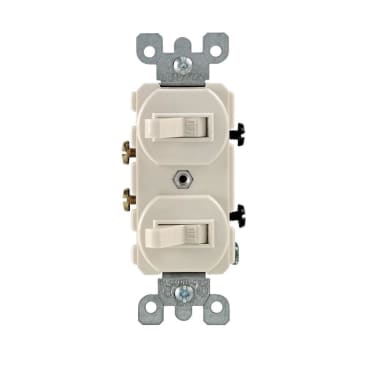

LEVITON 5224-2T 15A 120/277VAC 1-POLE COMMERCIAL DUPLEX 2-SWITCH COMBO LIGHT ALMOND
Product Details
Attributes
Features
Resources
Leviton® Combination Switch, Duplex Grounding, 12 A Max, 0.5 hp at 120 V AC, 2 hp at 240 to 277 V AC Electrical Rating, 1 Pole, 15 A at 120/277 VAC Contact, NEMA 5-15R Enclosure, Surface Mounting, 4.2 in H x 1.62 in W x 16 in D Size, 100 Operating Cycles, Environmental Conditions: -40 to 65 deg C Operating Temperature, Thermoplastic, Light Almond
With Leviton®'s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- All devices have a grounding screw except where noted
- Terminal screw accept up to 12 AWG copper or copper-clad wire
- Fit in standard wallboxes
- Break-off tabs on devices with switches permit conversion to separate feeds
- Side wired terminal
- Thermoplastic actuator and body, steel strap
- Duplex style single pole/single pole AC combination switch, grounding, side wired
Product Details
Leviton® Combination Switch, Duplex Grounding, 12 A Max, 0.5 hp at 120 V AC, 2 hp at 240 to 277 V AC Electrical Rating, 1 Pole, 15 A at 120/277 VAC Contact, NEMA 5-15R Enclosure, Surface Mounting, 4.2 in H x 1.62 in W x 16 in D Size, 100 Operating Cycles, Environmental Conditions: -40 to 65 deg C Operating Temperature, Thermoplastic, Light Almond
With Leviton®'s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
Attributes
Features
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- All devices have a grounding screw except where noted
- Terminal screw accept up to 12 AWG copper or copper-clad wire
- Fit in standard wallboxes
- Break-off tabs on devices with switches permit conversion to separate feeds
- Side wired terminal
- Thermoplastic actuator and body, steel strap
- Duplex style single pole/single pole AC combination switch, grounding, side wired
