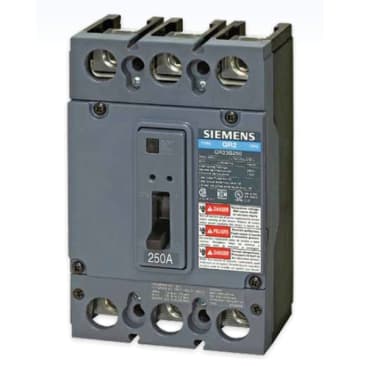

SIEMENS QRH23B250L Image 1

BREAKER QR 3P 250A 240V 25KA LUGS SIEMENS QRH23B250L

MFR Part #: QRH23B250L
SKU #: 1123617
Brand: Siemens
UPC: 804766136894
Siemens QRH23B250L Molded Case Circuit Breaker, 240 VAC, 250 A, 25 kA Interrupt, 3 -Pole, Thermal Magnetic Trip
For load centers, panelboards, powerpanels, switchboards and meter centers
CSA Certified | HACR Rated | NOM-003 | UL 489

Siemens Molded Case Circuit Breaker, 250 A, 240 VAC, 50/60 Hz, 25 kA Interrupt Rating, 3 Poles, 3 ph Phase, Feed-Thru Connection, QRH Frame, Thermal Magnetic Trip, Line and Load Side Lug Terminal, 40 deg C, 4-1/2 in Width, 3.39 in Length, 7 in Height

The Siemens QR circuit breaker has a compact design for use in North American markets. Features include the ability to handle higher interrupting ratings and higher inrush currents.

Product Details

Siemens Molded Case Circuit Breaker, 250 A, 240 VAC, 50/60 Hz, 25 kA Interrupt Rating, 3 Poles, 3 ph Phase, Feed-Thru Connection, QRH Frame, Thermal Magnetic Trip, Line and Load Side Lug Terminal, 40 deg C, 4-1/2 in Width, 3.39 in Length, 7 in Height

The Siemens QR circuit breaker has a compact design for use in North American markets. Features include the ability to handle higher interrupting ratings and higher inrush currents.

Attributes

Amperage Rating: 250 A
Number of Poles: 3
Voltage Rating: 240 VAC
Connection Type: Feed-Thru
Frequency Rating: 50/60 Hz
Height: 7 in
Interrupt Rating: 25 kA
Length: 3.39 in
Phase: 3 ph
Temperature Rating: 40 deg C
Terminal Type: Line and Load Side Lug
Trip Type: Thermal Magnetic
Width: 4-1/2 in

Features

  • Updated design includes push to trip button
  • Field installable internal accessories increase flexibility
  • Field installable external accessories for handle blocking/locking and interlocking
  • Cable in, cable out design
