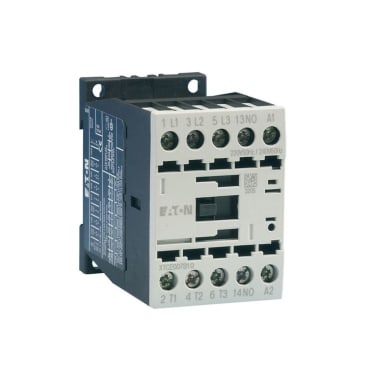

EATON XTCE009B10A 9A 3-POLE FRAME B FVNR CONTACTOR 1-NORMALLY OPEN

EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 110/120 V AC Coil, 9 A Maximum Load Current, 1/2 hp at 115 VAC 1 ph, 1 hp at 200 VAC 1 ph, 1-1/4 hp at 230 VAC 1 ph, 3 hp at 200/230 VAC 3 ph, 5 hp at 460 VAC 3 ph, 7-1/2 hp at 575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 45 mm Size, Screw Terminal, -13 to 122 deg F Operating

Small size. Big impact. The XT IEC contactors are powerful, efficient and versatile, and can be combined with our full range of electronic overload relays and bimetal relays. These DC devices stand out for their reduced power consumption, which makes them more energy efficient and also reduces the size of the power supply units. XT IEC contactors are suitable for global use and cover the entire output range, from mini contactor relays (up to 7 A) all the way to vacuum contactors (up to 3180 A).
