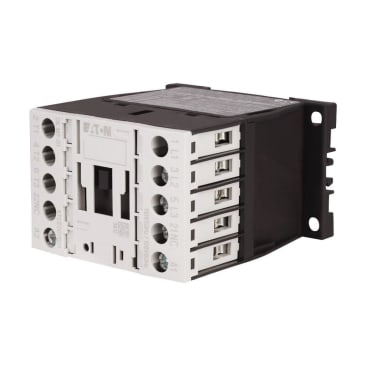

EATON XTCE009B01T 9A 3-POLE FRAME B FVNR CONTACTOR 1-NORMALLY CLOSED
MFR Part #: XTCE009B01T
SKU #: 1310026
Brand: EATON
UPC: 4015082767297
EATON XTCE009B01T Full Voltage Non-Reversing IEC Contactor, 24 V AC V Coil, 9 A, 1NC Contact, 3 Poles
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
CE Marking|CSA Certified|EN 60947|IEC 60947|RoHS Compliant|UL Listed
Product Details
Attributes
Features
Resources
EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 24 V AC Coil, 9 A Maximum Load Current, 1/2 hp at 115 VAC 1 ph, 1 hp at 200 VAC 1 ph, 1-1/4 hp at 230 VAC 1 ph, 3 hp at 200/230 VAC 3 ph, 5 hp at 460 VAC 3 ph, 7-1/2 hp at 575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NC Contact Configuration, 45 mm Size, Screw Terminal, DIN Rail/Panel Mounting
Coil Voltage:24 V AC
Contact Configuration:1NC
Frequency Rating:50/60 Hz
Mounting Type:DIN Rail/Panel
Number of Poles:3
Terminal Type:Screw
Maximum Load Current:9 A
Series:XT Series
Size:45 mm
- 2.5 kW at 220/230 VAC 3 ph, 4 kW at 380/400 VAC 3 ph, 5.5 kW at 415 VAC 3 ph 50/60 Hz coil power rating
Product Details
EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 24 V AC Coil, 9 A Maximum Load Current, 1/2 hp at 115 VAC 1 ph, 1 hp at 200 VAC 1 ph, 1-1/4 hp at 230 VAC 1 ph, 3 hp at 200/230 VAC 3 ph, 5 hp at 460 VAC 3 ph, 7-1/2 hp at 575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NC Contact Configuration, 45 mm Size, Screw Terminal, DIN Rail/Panel Mounting
Attributes
Coil Voltage: 24 V AC
Contact Configuration: 1NC
Frequency Rating: 50/60 Hz
Mounting Type: DIN Rail/Panel
Number of Poles: 3
Terminal Type: Screw
Maximum Load Current: 9 A
Series: XT Series
Size: 45 mm
Features
- 2.5 kW at 220/230 VAC 3 ph, 4 kW at 380/400 VAC 3 ph, 5.5 kW at 415 VAC 3 ph 50/60 Hz coil power rating
