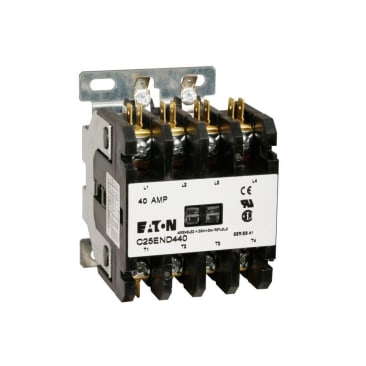

EATON C25ENF440B 40A 240V 4-POLE DEFINITE PURPOSE CONTACTOR

MFR Part #: C25ENF440B
SKU #: 1309959
Brand: EATON
UPC: 782113536606
EATON C25ENF440B E-Frame Definite Purpose Contactor With Metal Mounting Plate, 208/240 V AC V Coil, 40/50 A, 4 Poles
1 year
Electrical Assemblies, Panels, OEMs, Heating, Ventilation, Air Conditioning, Refrigeration (HVACR), Motor, Power Control Equipment Applications
CSA Certified,UL Recognized,RoHS Compliant

EATON Definite Purpose Contactor, E-Frame, 208/240 V AC Coil, 40/50 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, Double Break/Non-Reversing Contact, Quick-Connect Connection, Box Lug Terminal, Open Enclosure, 300000 Cycles Operating Cycles, 150 deg F Operating, Surface Mounting, 3.38 in L x 2.68 in W x 3.75 in H Dimensions

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.

Product Details

EATON Definite Purpose Contactor, E-Frame, 208/240 V AC Coil, 40/50 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, Double Break/Non-Reversing Contact, Quick-Connect Connection, Box Lug Terminal, Open Enclosure, 300000 Cycles Operating Cycles, 150 deg F Operating, Surface Mounting, 3.38 in L x 2.68 in W x 3.75 in H Dimensions

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.

Attributes

Coil Voltage: 208/240 V AC
Connection Type: Quick-Connect
Dimensions: 3.38 in L x 2.68 in W x 3.75 in H
Enclosure Type: Open
Frequency Rating: 50/60 Hz
Mounting Type: Surface
Number of Poles: 4
Terminal Type: Box Lug

Features

  • The universal mounting plate eliminates changing hole patterns when replacing competitive devices
  • Variety of terminal styles allows product to meet all specific application needs
  • Snap-on accessories require no tools for hassle-free installation
  • Quick coil changing ability allows for easy maintenance
  • Non-position sensitive mounting allows for fast, convenient setup
  • Shrouded or fingerproof terminals to reduce possibility of electrical shock
  • 25 to 40 A frame
  • 40 A Inductive/50 a resistive

Resources

Specification Sheet
