EATON C25DNJ350B Image 1

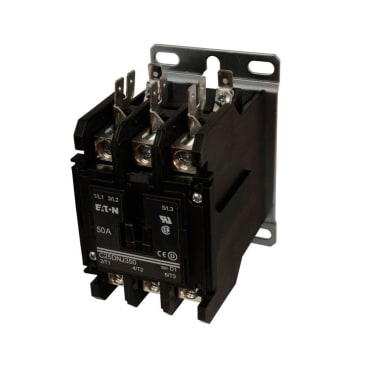

EATON C25DNJ350B 50A 3-POLE DEFINITE PURPOSE CONTACTOR BOX LUGS

MFR Part #: C25DNJ350B
SKU #: 1309961
Brand: EATON
UPC: 782116300730
EATON C25DNJ350B D-Frame Non-Reversing Definite Purpose Control Contactor With Metal Mounting Plate, 208 to 240 V AC at 50/60 Hz V Coil, 50 A, 3 Poles
1 year
Heating, Ventilation, Air Conditioning, Refrigeration (HVACR), Motor and Power Control Equipment
UL Listed file E1491 (Guide Number NLDX2),CSA Certified,CE Marked,RoHS Compliant

EATON Definite Purpose Control Contactor, D-Frame Non-Reversing, 208 to 240 V AC at 50/60 Hz Coil, 50 A Maximum Load Current, 10, 15 hp Coil, 3 Pole, Double Break Contact, Quick-Connect (Vertical In-Line) Connection, Box Lug Terminal, Open Enclosure, 300000 Cycles Operating Cycles, 150 deg F Operating, Surface Mounting, 4 in L x 2.6 in W x 3.8 in H Dimensions

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.

Product Details

EATON Definite Purpose Control Contactor, D-Frame Non-Reversing, 208 to 240 V AC at 50/60 Hz Coil, 50 A Maximum Load Current, 10, 15 hp Coil, 3 Pole, Double Break Contact, Quick-Connect (Vertical In-Line) Connection, Box Lug Terminal, Open Enclosure, 300000 Cycles Operating Cycles, 150 deg F Operating, Surface Mounting, 4 in L x 2.6 in W x 3.8 in H Dimensions

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.

Attributes

Contact Type: Double Break
Dimensions: 4 in L x 2.6 in W x 3.8 in H
Maximum Load Current: 50 A
Mounting Type: Surface
Terminal Type: Box Lug

Features

  • The universal mounting plate eliminates changing hole patterns when replacing competitive devices
  • Variety of terminal styles allows product to meet all specific application needs
  • Snap-on accessories require no tools for hassle-free installation
  • Quick coil changing ability allows for easy maintenance
  • Non-position sensitive mounting allows for fast, convenient setup
  • Shrouded or fingerproof terminals to reduce possibility of electrical shock
  • 10 hp at 1 ph, 15 hp at 3 ph motor rating
  • 15 to 50 A frame
