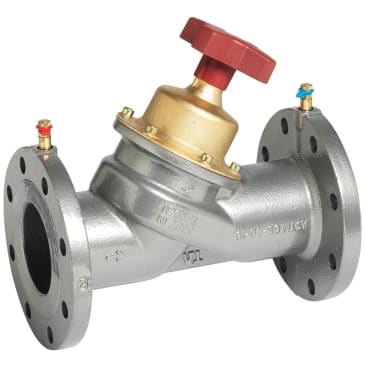

VICTAULIC V024788HBV Image 1

VICTAULIC V024788HBV SERIES 788 2-1/2 FLANGED END BALANCING VALVE

MFR Part #: V024788HBV
SKU #: 1302109
Brand: Victaulic®
UPC: 19515026286
Victaulic® TA 788 Series V024788HBV Manual Balancing Valve, 2-1/2 in, Flanged, 21 to 91 gpm, 250 psi, Ductile Iron
Memory Stop
For heating (not steam) and cooling systems
ASME/ANSI B16.42

TA 788 Series Manual Balancing Valve, 2-1/2 in, Flanged, 21 to 91 gpm, 250 psi, Ductile Iron, Epoxy-Coated

Product Details

TA 788 Series Manual Balancing Valve, 2-1/2 in, Flanged, 21 to 91 gpm, 250 psi, Ductile Iron, Epoxy-Coated

Attributes

Connection Type: Flanged
Dimensions: 2.875 in OD x 11.42 in L
Finish: Epoxy-Coated
Flow Coefficient (Cv): 98.3 Cv
Flow Rate: 21 to 91 gpm
Handle Material: Red Polyamide
Material: Ductile Iron
Material Standard: ASTM A536
Operator Type: Handwheel
Seal Material: EPDM
Seat Material: Ductile Iron
Series: TA 788 Series
Stem Material: Brass Alloy
Top to Inlet Center: 8.07 in
Trim Material: Brass Alloy Bonnet and Spindle

Features

  • "Y" patterned globe valve
  • TA Series 786, 787H & 78KH: Digital hand wheel with 4 turns to open; Includes memory stop
  • TA Series 788 & 789: Digital hand wheel with 8, 12 or 16 turns to open (depending on size); Includes memory stop

Resources

Specification Sheet
