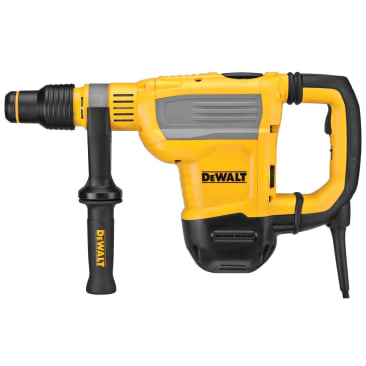

DEWALT D25614K Image 1

DEWALT D25614K SDS MAX ROTARY HAMMER

MFR Part #: D25614K
SKU #: 1308471
Brand: DeWALT®
UPC: 885911618410
DeWALT® D25614K Combination Corded Rotary Hammer Kit, 1-3/4 in SDS MAX® Chuck, 1450 to 2900 bpm, 190 to 380 rpm No-Load, 20-1/2 in OAL
3 years Limited
D25614K 1-3/4 in SDS MAX® Hammer and Kit Box

DeWALT® Rotary Hammer Kit, Combination Corded, 1-3/4 in Chuck, SDS MAX® Chuck, 1450 to 2900 bpm Blows per Minute, 10.5 J Impact Energy, 190 to 380 rpm No-Load, 120 V AC, 14 A, SHOCKS® Active Vibration/Variable Speed Control, No Reversible, 20-1/2 in Overall Length, 11-1/2 in H Dimensions

The 1-3/4 in SDS MAX® combination hammer is a midweight, high performance hammer that is powered by durable German engineered mechanisms. It delivers 10.5 J of impact energy for fast drilling and chipping, even in the hardest concrete. Constant speed electronics allow the tool to maintain speed under load, while the patented E-Clutch® system helps protect the user in bind up situations by stopping the rotation of the bit. The midweight design makes it ideally suited for high performance, horizontal serial drilling for #5 to #8 rebar, dry coring up to 4 in, chipping in any upper to lower wall and bushing applications. The SHOCKS Active Vibration Control® system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This tool comes Tag Ready™, so users and companies can attach the DeWALT® tag and track its location virtually anywhere via the Tool Connect™ app.

Product Details

DeWALT® Rotary Hammer Kit, Combination Corded, 1-3/4 in Chuck, SDS MAX® Chuck, 1450 to 2900 bpm Blows per Minute, 10.5 J Impact Energy, 190 to 380 rpm No-Load, 120 V AC, 14 A, SHOCKS® Active Vibration/Variable Speed Control, No Reversible, 20-1/2 in Overall Length, 11-1/2 in H Dimensions

The 1-3/4 in SDS MAX® combination hammer is a midweight, high performance hammer that is powered by durable German engineered mechanisms. It delivers 10.5 J of impact energy for fast drilling and chipping, even in the hardest concrete. Constant speed electronics allow the tool to maintain speed under load, while the patented E-Clutch® system helps protect the user in bind up situations by stopping the rotation of the bit. The midweight design makes it ideally suited for high performance, horizontal serial drilling for #5 to #8 rebar, dry coring up to 4 in, chipping in any upper to lower wall and bushing applications. The SHOCKS Active Vibration Control® system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This tool comes Tag Ready™, so users and companies can attach the DeWALT® tag and track its location virtually anywhere via the Tool Connect™ app.

Attributes

Amperage Rating14 A
Blows per Minute1450 to 2900 bpm
Chuck Size1-3/4 in
Chuck TypeSDS Max®
Control TypeSHOCKS® Active Vibration/Variable Speed
Dimensions11-1/2 in H
Impact Energy10.5 J
No-Load Speed190 to 380 rpm
Overall Length20-1/2 in
ReversibleNo
Tool/KitKit
TypeCombination Corded
Voltage Rating120 V AC

Features

  • 10.5 J of impact energy for fast drilling and chipping, even in the hardest concrete
  • 7-position, variable-speed control for precision hole placement, chipping, and drilling with Atomic Undercut bits
  • Constant-speed electronics allow the tool to maintain speed under load
  • The midweight design makes it ideally suited for high-performance, horizontal serial drilling for 5 - 8 rebar, dry coring up to 4 in, chipping in any upper to lower wall, and bushing applications
  • The shocks active vibration control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature
  • E-Clutch system protects the user in bind up situations by stopping the rotation of the bit
  • The Tag Ready feature lets users and companies attach the DeWALT tag to track its location virtually anywhere via the DeWALT Tool Connect app
