4-WAYX2 HEATLINK MIX VLV
MFR Part #: 64050
SKU #: 0154482
Brand: HeatLink®
UPC: 400000097695

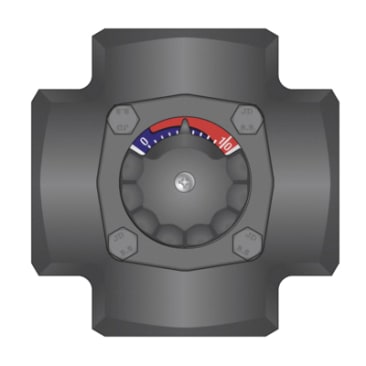

HeatLink® 64050 Mixing Valve, 2 in Nominal, FNPT, 4 , 230 deg F, Brass Body
Product Details
Attributes
Features
Resources
HeatLink® Mixing Valve, 2 in Nominal, FNPT Connection, Number of Ports/Ways: 4, Brass Body, 230 deg F, 4-3/4 in L x 3-5/8 in W x 4-3/4 in H
Unit mixes high temperature boiler water with heating return water to create a supply water temperature. It has the option of manual operation, or it can be fitted with a mixing valve motor for fully automatic operation.
Body Material:Brass
Connection Type:FNPT
Nominal Size:2 in
Number of Ports/Ways:4
Temperature Rating:230 deg F
- Brass slide and spindle
- (2) EPDM O-ring spindle sealing
- 0.4 N-m torque
- 10 N-m recommended torque of actuating motor
- 58150 motor
Product Details
HeatLink® Mixing Valve, 2 in Nominal, FNPT Connection, Number of Ports/Ways: 4, Brass Body, 230 deg F, 4-3/4 in L x 3-5/8 in W x 4-3/4 in H
Unit mixes high temperature boiler water with heating return water to create a supply water temperature. It has the option of manual operation, or it can be fitted with a mixing valve motor for fully automatic operation.
Attributes
Body Material: Brass
Connection Type: FNPT
Nominal Size: 2 in
Number of Ports/Ways: 4
Temperature Rating: 230 deg F
Features
- Brass slide and spindle
- (2) EPDM O-ring spindle sealing
- 0.4 N-m torque
- 10 N-m recommended torque of actuating motor
- 58150 motor
