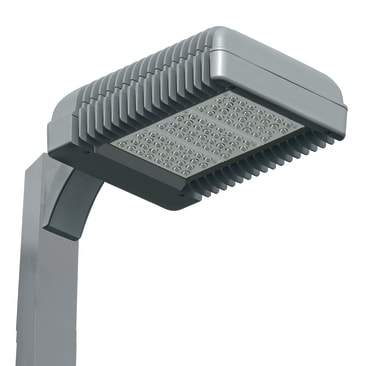

HUBBELL CL1-A-60LU-5K-3-DB Image 1
HUBBELL CL1-A-60LU-5K-3-DB Image 2
HUBBELL CL1-A-60LU-5K-3-DB Image 3
content loaded
HUBBELL CL1-A-60LU-5K-3-DB Image 1

60W LED UNV CIMARRON LUMINAIRE HUBBELL CL1A60LU5K3DB

MFR Part #: CL1-A-60LU-5K-3-DB
SKU #: 1114575
Brand: Hubbell® Outdoor Lighting
UPC: 785988030552
EXO Contour® CL1-A-60LU-5K-3-DB Cimarron Type III Area Lighting, (60) Lamp, 135 W Fixture, 120 to 277 V AC, Powder Coated/Painted Housing
Limited
This product may be subject to ecological fees.
Wet Locations, Area and Site Applications
ARRA Compliant | Buy American Act Compliant | UL 1598A | DLC Listed | CSA 22.2 No. 250 | IDA Approved | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

EXO Contour® Area Lighting, Type III, Series: Cimarron, 120 to 277 V AC, 135 W Fixture, 1.18/0.52 A, 60 Lamps, 60000 hr Average Life, 5000 K Color Temperature, 70 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic Lens, 15127 Lumens, IP65 Enclosure, Arm Mounting, Die Cast Aluminum Housing Material, Powder Coated/Painted Housing Finish, 21-3/4 in L x 16 in W x 6-3/4 in D Dimensions

The Contour® series luminaires offer traditional square day forms with softened edges for a versatile look that complements many applications. The KADRD LED retrofits any existing 100 to 400 W metal halide or high pressure sodium KAD into a high performance LED luminaire, while realizing typical energy savings up to 65% with expected service life up to 100000 hr. The KADRD LED retrofit door simply replaces the existing KAD door containing the glass lens and installs in minutes.

Product Details

EXO Contour® Area Lighting, Type III, Series: Cimarron, 120 to 277 V AC, 135 W Fixture, 1.18/0.52 A, 60 Lamps, 60000 hr Average Life, 5000 K Color Temperature, 70 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic Lens, 15127 Lumens, IP65 Enclosure, Arm Mounting, Die Cast Aluminum Housing Material, Powder Coated/Painted Housing Finish, 21-3/4 in L x 16 in W x 6-3/4 in D Dimensions

The Contour® series luminaires offer traditional square day forms with softened edges for a versatile look that complements many applications. The KADRD LED retrofits any existing 100 to 400 W metal halide or high pressure sodium KAD into a high performance LED luminaire, while realizing typical energy savings up to 65% with expected service life up to 100000 hr. The KADRD LED retrofit door simply replaces the existing KAD door containing the glass lens and installs in minutes.

Attributes

Amperage Rating: 1.18/0.52 A
Average Life: 60000 hr
Ballast Type: 0 to 10 V Dimming Driver
Color Rendering Index (CRI): 70
Color Temperature: 5000 K
Dimensions: 21-3/4 in L x 16 in W x 6-3/4 in D
Enclosure Type: IP65
Fixture Wattage: 135 W
Housing Finish: Powder Coated/Painted
Housing Material: Die Cast Aluminum
Lens Type: Acrylic
Lumens: 15127 Lumens
Mounting Type: Arm
Number of Lamps: 60
Series: Cimarron
Type: Type III
Voltage Rating: 120 to 277 V AC

Features

  • Cimarron LED incorporates a unique vertically finned die cast housing that optimizes heat transfer to keep the fixture cool and maximize component life
