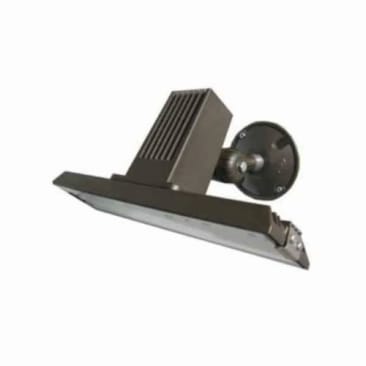

RAB GFL-LED-20W-120V-BRZ Image 1

MULTI-PURPOSE OUTDOOR FLOOD LIGHT RAB GFL-LED20W

MFR Part #: GFL-LED-20W-120V-BRZ
SKU #: 1116120
Brand: RAB® Design Lighting
UPC: 061184991263
RAB® GFL-LED-20W-120V-BRZ Floodlight, (6) LED Lamp, 18 W Fixture, 120 to 277 V AC, Bronze Housing
This product may be subject to ecological fees.
Lighting Patios, Yards, Landscapes and Building Facades
cULus Listed

RAB® Floodlight, 120 to 277 V AC, 18 W Fixture, LED Lamp, 6 Lamps, 50000 hr Average Life, 5000 K Color Temperature, Tempered Glass Lens, 1700 Lumens, NEMA 7H x 7V Enclosure, Wall Mounting, Aluminum Housing Material, Bronze Housing Finish, 11.8 in H x 6.1 in W Dimensions

The GFL is a rugged cast aluminium LED flood which delivers 1700 lumens. The fixture has a 1/2 in NPT knuckle and comes complete with a round mounting cover plate for standard 4" junction boxes. It is ideal for doorways, entrances, sign and landscape lighting.

Product Details

RAB® Floodlight, 120 to 277 V AC, 18 W Fixture, LED Lamp, 6 Lamps, 50000 hr Average Life, 5000 K Color Temperature, Tempered Glass Lens, 1700 Lumens, NEMA 7H x 7V Enclosure, Wall Mounting, Aluminum Housing Material, Bronze Housing Finish, 11.8 in H x 6.1 in W Dimensions

The GFL is a rugged cast aluminium LED flood which delivers 1700 lumens. The fixture has a 1/2 in NPT knuckle and comes complete with a round mounting cover plate for standard 4" junction boxes. It is ideal for doorways, entrances, sign and landscape lighting.

Attributes

Average Life: 50000 hr
Color Temperature: 5000 K
Dimensions: 11.8 in H x 6.1 in W
Fixture Wattage: 18 W
Housing Finish: Bronze
Housing Material: Aluminum
Lamp Type: LED
Lens Type: Tempered Glass
Lumens: 1700 Lumens
Mounting Type: Wall
Number of Lamps: 6
Voltage Rating: 120 to 277 V AC

Features

  • Precision die cast aluminium with 1/2 in NPT locking swivel arm
  • Housing and arm have a powder coat paint finish
  • Heat and impact resistant, tempered clear glass lens
  • The GFL has a 1/2 in NPT swivel arm with mounting plate
  • The fixture can be wall or ceiling mounted
  • It can also be combined with various arms as a sign light
  • NEMA 7Hx7V beam pattern
  • Power consumption of 18 W
  • Total harmonic distortion of 0.1598%
  • Power factor of 0.992
