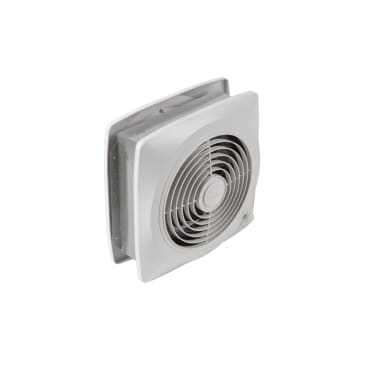

8IN 180 ROOM TO ROOM FAN BROAN 511

MFR Part #: 511
SKU #: 0692177
Brand: BROAN
UPC: 026715022922
Broan-NuTone® 511 Utility Ventilation Fan, 120 VAC, 0.9 A, 25 ga Steel, Plastic
This product may be subject to ecological fees.
HVI Certified | UL Listed

Broan-NuTone® Utility Ventilation Fan, 120 VAC, 0.9 A, 60 Hz, 25 ga Steel, Plastic, White, Wall Mount, 5-1/2 in Length, 11-1/2 in Width, 11-1/2 in Height, 13-1/2 in L x 13-1/2 in W Grille, 180 cfm, 1575 rpm Speed Rating

Product Details

Broan-NuTone® Utility Ventilation Fan, 120 VAC, 0.9 A, 60 Hz, 25 ga Steel, Plastic, White, Wall Mount, 5-1/2 in Length, 11-1/2 in Width, 11-1/2 in Height, 13-1/2 in L x 13-1/2 in W Grille, 180 cfm, 1575 rpm Speed Rating

Attributes

Amperage Rating.9 A
CFM Rating180 cfm
ColorWhite
Frequency Rating60 Hz
Grille Size13-1/2 in L x 13-1/2 in W
Height11-1/2 in
Length5-1/2 in
Material25 ga Steel, Plastic
Mounting TypeWall
Speed Rating1575 rpm
Voltage Rating120 VAC
Width11-1/2 in

Features

  • Utility Ventilation Fan
  • Easily installs in interior walls to move heated or cooled air from one room to another, spreads heat from fireplaces, cool air from air conditioners to adjoining rooms
  • Two attractive white polymeric grilles can be painted to match decor
  • White polymeric grilles can be painted to match any decor
  • Permanently lubricated, thermally protected, plug-in motor
  • 25 ga steel housing finished with rugged black electrically-bonded epoxy paint
  • Ventilator shall be steel housing finished with electrically-bonded epoxy paint
  • High-strength, reinforced polymeric fan blade
  • Motor assembly offers fast, easy "twist-lock" installation
  • Requires 11-5/8 in square hole through both interior walls
  • Solid state speed control for fan speed and sound level selection
  • Housing can be fastened to walls in several ways - allows flexibility to meet almost any-mounting situation
  • Adjustable housing fits walls from 3 - 5-1/2 in Thick
  • Motor assembly shall be removable and permanently lubricated
  • 4.5 sones sound
  • Eliminate humidity from laundry rooms, tobacco smoke from recreation rooms and workshops or cooking fumes from kitchens with Broan's high-efficiency utility ventilators
