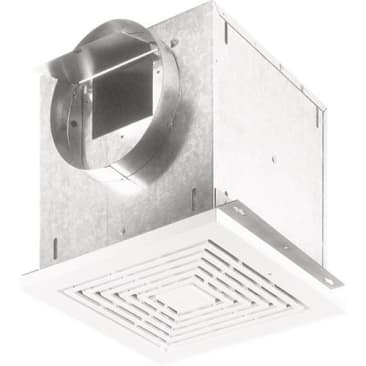

BROAN L300 308 CFM LO-SONE VENTILATOR
Product Details
Attributes
Features
Resources
Broan® LoSone Select® Ceiling Exhaust Ventilator, High Capacity, 313 cfm, 8 in Duct Dia, 120 V AC, 2.6 A, 60 Hz, 14 in Grille Length, 14 in Grille Width, Polymer Grille, 12-1/4 in Housing Length, 12-1/4 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, White, Domestic
Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.
- Resilient anti-vibration motor mounts
- Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance
- Low profile styling grille blends with any decor
- Rugged 20 ga galvanized steel housing with 0.5 in acoustic insulation inside
- 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector
- May be installed as an in-line ventilator with addition of accessory kit model 981L, for controlling use model 57V (ivory)/57W (white) 3 A, electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control
- Plug-in permanently lubricated thermally protected motor designed for continuous operation
- Low rpm for quiet operation blower
- 309 cfm at 0.1 in SP horizontal, 314 cfm at 0.1 in SP vertical
- 308 cfm at 1/8 in SP horizontal, 2.9 Sones, 313 cfm at 0.1 in SP at 1/8 in SP vertical, 3 Sones
- Round duct
- UL listed for use over bathtubs and showers when connected to a GFCI circuit
- Square shape grille
- 905 rpm Horizontal, 940 rpm at 0.1 in SP vertical AC motor
Product Details
Broan® LoSone Select® Ceiling Exhaust Ventilator, High Capacity, 313 cfm, 8 in Duct Dia, 120 V AC, 2.6 A, 60 Hz, 14 in Grille Length, 14 in Grille Width, Polymer Grille, 12-1/4 in Housing Length, 12-1/4 in Housing Width, 11-3/4 in Housing Height, Galvanized Steel Housing, Ceiling Mount, White, Domestic
Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.
Attributes
Features
- Resilient anti-vibration motor mounts
- Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance
- Low profile styling grille blends with any decor
- Rugged 20 ga galvanized steel housing with 0.5 in acoustic insulation inside
- 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector
- May be installed as an in-line ventilator with addition of accessory kit model 981L, for controlling use model 57V (ivory)/57W (white) 3 A, electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control
- Plug-in permanently lubricated thermally protected motor designed for continuous operation
- Low rpm for quiet operation blower
- 309 cfm at 0.1 in SP horizontal, 314 cfm at 0.1 in SP vertical
- 308 cfm at 1/8 in SP horizontal, 2.9 Sones, 313 cfm at 0.1 in SP at 1/8 in SP vertical, 3 Sones
- Round duct
- UL listed for use over bathtubs and showers when connected to a GFCI circuit
- Square shape grille
- 905 rpm Horizontal, 940 rpm at 0.1 in SP vertical AC motor
