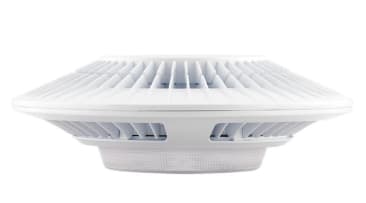

GARAGE CEILING LIGHT 52W NTRL W/PRM LENS WHT RCL GLED52NW

MFR Part #: GLED52NW
SKU #: 1159240
Brand: RAB Lighting
UPC: 019813038766
RAB GLED52NW Standard Garage Lighting, (4) LED Lamp, 59 W Fixture, 120/208/240/277 V AC, White Housing
5 years
This product may be subject to ecological fees.
Wet Locations, Outdoor and Parking Garage Applications
ARRA Compliant | Buy American Act Compliant | UL Listed | IESNA LM-79 | IESNA LM-80

RAB Garage Lighting, Standard, 120/208/240/277 V AC, 59 W Fixture, 0.49/0.31/0.27/0.24 A, LED Lamp, 52 W Lamp, 4 Lamps, 100000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 74 CRI, Class 2/Constant Current Ballast, Prismatic Polycarbonate Lens, 2627 Lumens, Ceiling Mounting, Die Cast Aluminum Housing Material, White Housing Finish, 5-1/2 in H x 16 in W Dimensions

Product Details

RAB Garage Lighting, Standard, 120/208/240/277 V AC, 59 W Fixture, 0.49/0.31/0.27/0.24 A, LED Lamp, 52 W Lamp, 4 Lamps, 100000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 74 CRI, Class 2/Constant Current Ballast, Prismatic Polycarbonate Lens, 2627 Lumens, Ceiling Mounting, Die Cast Aluminum Housing Material, White Housing Finish, 5-1/2 in H x 16 in W Dimensions

Attributes

Color Temperature: 4000 K
Fixture Wattage: 59 W
Lumens: 2627 Lumens
Mounting Type: Ceiling
Amperage Rating: 0.49/0.31/0.27/0.24 A
Average Life: 100000 hr
Ballast Type: Class 2/Constant Current
Color Rendering Index (CRI): 74
Dimensions: 5-1/2 in H x 16 in W
Housing Finish: White
Housing Material: Die Cast Aluminum
Lamp Type: LED
Lamp Wattage: 52 W
Lens Type: Prismatic Polycarbonate
Light Color: Neutral White
Number of Lamps: 4
Type: Standard
Voltage Rating: 120/208/240/277 V AC

Features

  • Low profile design
  • 100000 hr LED lifespan based on IES LM-80 results and TM-21 calculations lifespan
  • Up to 25% reduction in fixture count
  • Lock screw provided for pendant mounting
  • Minimum starting temperature is -40 deg F
  • Suitable for use in 104 deg F ambient temperature
  • No photocell
