1/2IN PEX RI VALVE PRESSURE BAL W/SCREW STOPS AM STD R127SS
MFR Part #: R127SS
SKU #: 1032590
Brand: American Standard
UPC: 012611405433

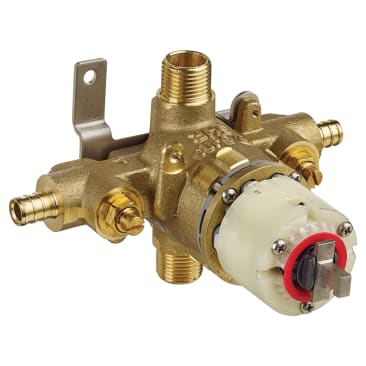

American Standard R127SS Rough-In Valve Body, 1/2 in NPT Inlet 1/2 in NPT Outlet, Cast Brass Body, Import
PEX Inlets/Universal Outlet
ANSI A117.1 | ASSE 1016 | ASME A112.18.1 | ASTM F1807 | CSA B125
Product Details
Attributes
Features
American Standard, R127SS, Rough-In Valve Body, 1/2 in NPT Inlet Connection, 1/2 in NPT Outlet, Wall Mounting, Cast Brass Body, 8-1/4 in H Dimensions, Import
Body Material:Cast Brass
Clearance Items:Clearance
Country Of Origin:Mexico
Dimensions:8-1/4 in H
Domestic/Import:Import
Inlet Connection:1/2 in NPT
Mounting Type:Wall
Outlet Connection:1/2 in NPT
- PEX inlets/universal outlets for crimp ring PEX system (ASTM F1807) with screwdriver stops
- Ceramic disc valve cartridge assures a lifetime of drip-free performance and allows easy fine tuning of temperature (125 deg handle rotation from off to hot)
- Pressure balancing valve cartridge - maintains constant output temperature in response to changes in hot and cold supply pressure, diaphragm system engineered to eliminate cross flow, avoids failure due to mineral deposits, ideal for use in hard water
- Diaphragm system engineered to eliminate cross flow, avoids failure due to mineral deposits, ideal for use in hard water
- Back-to-back capability hot and cold can be reversed quickly and easily
- Adjustable hot limit safety stop limits the amount of hot water allowed to mix with the cold to help reduce the risk of accidental scalding
- Exclusive plaster guard is designed to protect valve during installation and serve as a mounting plate for thin-wall installations, two-piece design allows valve to be tested prior to trim installation
- 1-5/8 in to 3-1/4 in W rough-in
- Without trim
- Cast brass valve body is durable quality that will last a lifetime and ideal material for prolonged contact with water
