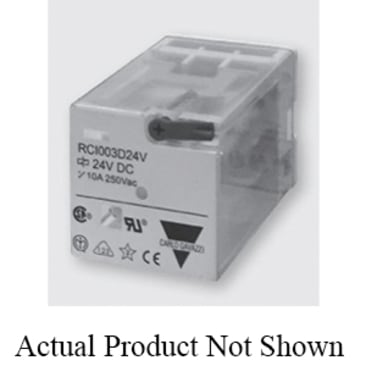

CARLO GAVAZZI RCI002A24V Image 1

CARLO GAVAZZI RCI002A24V DPDT 24V 8PIN RELAY

MFR Part #: RCI002A24V
SKU #: 1243581
Brand: Carlo Gavazzi
UPC: 400050318757
Carlo Gavazzi RCI002A24V Industrial Relay, 10 A, 8 -Pin, DPDT, 24 V Coil
CE Marked | CSA Certified | RoHS Compliant | UL Listed

Carlo Gavazzi Industrial Relay, 250 VAC/30 VDC Input, 10 A, 24 V Coil, 250 VAC/30 VDC Switching Voltage, <=100 mOhm, DPDT, 8 Pins, Socket Mount, AC Coil, <20 ms Operating, 100000 cycles Electrical, 10000000 cycles Mechanical Operating Cycles, Silver Tin Oxide Contact, -40 to 55 deg F, 1.36 in Height, 2.22 in Width, Additional Information: 1/3 hp Rating

The RCI is an industrial relay that can be used in a wide range of applications.

Product Details

Carlo Gavazzi Industrial Relay, 250 VAC/30 VDC Input, 10 A, 24 V Coil, 250 VAC/30 VDC Switching Voltage, <=100 mOhm, DPDT, 8 Pins, Socket Mount, AC Coil, <20 ms Operating, 100000 cycles Electrical, 10000000 cycles Mechanical Operating Cycles, Silver Tin Oxide Contact, -40 to 55 deg F, 1.36 in Height, 2.22 in Width, Additional Information: 1/3 hp Rating

The RCI is an industrial relay that can be used in a wide range of applications.

Attributes

Amperage Rating: 10 A
Clearance Items: Clearance
Coil Voltage: 24 V
Contact Configuration: DPDT
Contact Material: Silver Tin Oxide
Mounting Type: Socket
Number of Pins: 8
Switching Voltage: 250 VAC/30 VDC
Width: 2.22 in

Features

  • Electrical life of 100000 cycles
  • Mechanical life of 10000000 cycles
  • DIN sockets with two terminal layout options
  • Standard indicating LED, push arm and test flag

Resources

Specification Sheet
