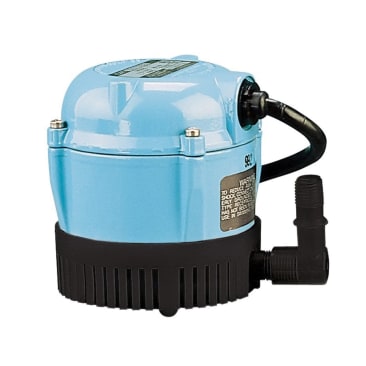

LITTLE GIANT 500500 Image 1

LITTLE GIANT 500500 1-AA-18

MFR Part #: 500500
SKU #: 1153358
Brand: Little Giant®
UPC: 010121005006
Little Giant® 500500 1-A Small Direct Drive Oil Filled Submersible Pump, 170 gph Flow Rate, 1/4 in MNPT Outlet, 1/200 hp, Epoxy Coated Die Cast Aluminum
For water transfer or recirculation and water displays
cCSAus Certified | UL Listed

Little Giant® Submersible Pump, Small Direct Drive Oil Filled, Series: 1-A, 170 gph Flow Rate, 1/4 in MNPT Outlet, 1/200 hp, 115 V, 1.1 A, 60 Hz Frequency, 3 psi Maximum, Polypropylene Impeller, 120 deg F, Epoxy Coated Die Cast Aluminum, 4.1 in L x 4.1 in W x 4.3 in H Dimensions

Product Details

Little Giant® Submersible Pump, Small Direct Drive Oil Filled, Series: 1-A, 170 gph Flow Rate, 1/4 in MNPT Outlet, 1/200 hp, 115 V, 1.1 A, 60 Hz Frequency, 3 psi Maximum, Polypropylene Impeller, 120 deg F, Epoxy Coated Die Cast Aluminum, 4.1 in L x 4.1 in W x 4.3 in H Dimensions

Attributes

Country Of Origin: Mexico
Flow Rate: 170 gph
Horsepower: 1/200 hp
Voltage Rating: 115 V
Amperage Rating: 1.1 A
Dimensions: 4.1 in L x 4.1 in W x 4.3 in H
Frequency Rating: 60 Hz
Impeller Type: Polypropylene
Material: Epoxy Coated Die Cast Aluminum
Maximum Pressure: 3 psi
Outlet Size: 1/4 in MNPT
Series: 1-A
Temperature Rating: 120 deg F
Type: Small Direct Drive Oil Filled

Features

  • 1/200 hp oil filled direct drive motor
  • Designed for continuous duty, submersible use only
  • Epoxy coated cast aluminum housing and cover
  • Polypropylene volute and elbow
  • Nitrile shaft seal

Resources

Specification Sheet
