LITTLE GIANT 514730 16S-CIM
MFR Part #: 514730
SKU #: 1153778
Brand: Little Giant®
UPC: 010121147300

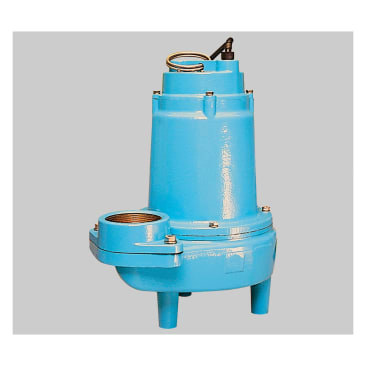

Little Giant® 514730 16S Sewage Pump, 1 hp, 380 to 460 V AC, 3 in FNPT Outlet, 3 A, 3 ph
3 Years
Cast Iron Permanent Split Capacitor Motor
Dewatering, Sewage and Effluent Wastewater Transfer
cCSAus Certified
Product Details
Attributes
Features
Resources
Little Giant® Sewage Pump, Series: 16S, 160 gpm Flow Rate, 3 in FNPT Outlet, 35 ft Maximum Head, 1 hp, 380 to 460 V AC, 3 A, 50/60 Hz Frequency, 3 ph, 15.1 psi Maximum, SOW 18/4 AWG 20 ft Cord, Cast Iron 2-Vane Non-Clogging Impeller, 140 deg F, Upper and Lower Ball Bearing, 14.07 in L x 9.89 in W x 16.15 in H Dimensions, Domestic/Import: Import
Country Of Origin:Mexico
Horsepower:1 hp
Maximum Head:35 ft
Outlet Size:3 in FNPT
Voltage Rating:380 to 460 V AC
Amperage Rating:3 A
Bearing Type:Upper and Lower Ball
Cord Type:SOW 18/4 AWG 20 ft
Dimensions:14.07 in L x 9.89 in W x 16.15 in H
Domestic/Import:Import
Flow Rate:160 gpm
Frequency Rating:50/60 Hz
Impeller Type:Cast Iron 2-Vane Non-Clogging
Maximum Pressure:15.1 psi
Phase:3
Series:16S
Temperature Rating:140 deg F
- Designed for continuous operation
- Handles solids up to 2 in Dia
- Manual operation
Product Details
Little Giant® Sewage Pump, Series: 16S, 160 gpm Flow Rate, 3 in FNPT Outlet, 35 ft Maximum Head, 1 hp, 380 to 460 V AC, 3 A, 50/60 Hz Frequency, 3 ph, 15.1 psi Maximum, SOW 18/4 AWG 20 ft Cord, Cast Iron 2-Vane Non-Clogging Impeller, 140 deg F, Upper and Lower Ball Bearing, 14.07 in L x 9.89 in W x 16.15 in H Dimensions, Domestic/Import: Import
Attributes
Country Of Origin: Mexico
Horsepower: 1 hp
Maximum Head: 35 ft
Outlet Size: 3 in FNPT
Voltage Rating: 380 to 460 V AC
Amperage Rating: 3 A
Bearing Type: Upper and Lower Ball
Cord Type: SOW 18/4 AWG 20 ft
Dimensions: 14.07 in L x 9.89 in W x 16.15 in H
Domestic/Import: Import
Flow Rate: 160 gpm
Frequency Rating: 50/60 Hz
Impeller Type: Cast Iron 2-Vane Non-Clogging
Maximum Pressure: 15.1 psi
Phase: 3
Series: 16S
Temperature Rating: 140 deg F
Features
- Designed for continuous operation
- Handles solids up to 2 in Dia
- Manual operation
