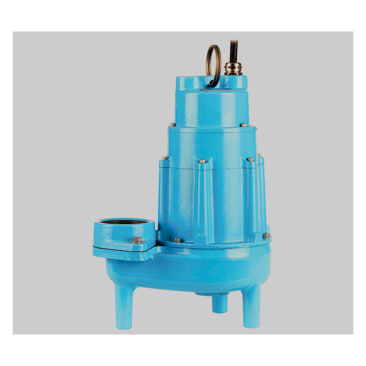

LITTLE GIANT 520200 20E-CIM
MFR Part #: 520200
SKU #: 1153791
Brand: Little Giant®
UPC: 010121202009
Little Giant® 520200 20E Effluent Pump, 135 gpm Max Flow, 20 ft Rated Head, Non-Automatic, 110 ft Max Head, 230 V, 1 ph
3 Years
Cast Iron Permanent Split Capacitor Motor
Effluent Wastewater Removal, Dewatering and Water Transfer
cCSAus Certified
Product Details
Attributes
Features
Resources
Little Giant® Effluent Pump, Series: 20E, 135 gpm Maximum, 20 ft, Non-Automatic, 2 in FNPT Outlet, 110 ft Maximum Head, 80 ft Maximum Suction Lift, 2 hp, 230 V, 16.4 A, 60 Hz Frequency, 1 ph, 47.6 psi Maximum, 3200 rpm Motor, SOOW 20 ft Cord, Red Brass Vortex Impeller, 140 deg F, Upper and Lower Ball Bearing, 12.93 in L x 8.42 in W Dimensions, Import
Country Of Origin:Taiwan
Horsepower:2 hp
Maximum Flow Rate:135 gpm
Maximum Head:110 ft
Outlet Size:2 in FNPT
Amperage Rating:16.4 A
Automatic/Non Automatic:Non-Automatic
Bearing Type:Upper and Lower Ball
Cord Type:SOOW 20 ft
Dimensions:12.93 in L x 8.42 in W
Domestic/Import:Import
Frequency Rating:60 Hz
Impeller Type:Red Brass Vortex
Maximum Pressure:47.6 psi
Maximum Suction Lift:80 ft
Motor Speed:3200 rpm
Phase:1
Rated Head:20 ft
Series:20E
Temperature Rating:140 deg F
Voltage Rating:230 V
- Completely submersible, designed for continuous duty
- Handles solids up to 3/4 in Dia
Product Details
Little Giant® Effluent Pump, Series: 20E, 135 gpm Maximum, 20 ft, Non-Automatic, 2 in FNPT Outlet, 110 ft Maximum Head, 80 ft Maximum Suction Lift, 2 hp, 230 V, 16.4 A, 60 Hz Frequency, 1 ph, 47.6 psi Maximum, 3200 rpm Motor, SOOW 20 ft Cord, Red Brass Vortex Impeller, 140 deg F, Upper and Lower Ball Bearing, 12.93 in L x 8.42 in W Dimensions, Import
Attributes
Country Of Origin: Taiwan
Horsepower: 2 hp
Maximum Flow Rate: 135 gpm
Maximum Head: 110 ft
Outlet Size: 2 in FNPT
Amperage Rating: 16.4 A
Automatic/Non Automatic: Non-Automatic
Bearing Type: Upper and Lower Ball
Cord Type: SOOW 20 ft
Dimensions: 12.93 in L x 8.42 in W
Domestic/Import: Import
Frequency Rating: 60 Hz
Impeller Type: Red Brass Vortex
Maximum Pressure: 47.6 psi
Maximum Suction Lift: 80 ft
Motor Speed: 3200 rpm
Phase: 1
Rated Head: 20 ft
Series: 20E
Temperature Rating: 140 deg F
Voltage Rating: 230 V
Features
- Completely submersible, designed for continuous duty
- Handles solids up to 3/4 in Dia
