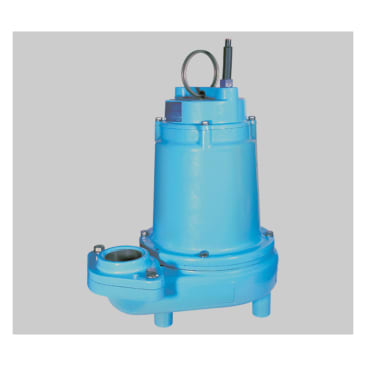

LITTLE GIANT 514520 Image 1

LITTLE GIANT 514520 16EH-CIM

MFR Part #: 514520
SKU #: 1153770
Brand: Little Giant®
UPC: 010121145207
Little Giant® 514520 16EH Effluent Pump, 90 gpm Max Flow, 30 ft Rated Head, Non-Automatic, 81 ft Max Head, 230 V, 1 ph
3 Years
Cast Iron Permanent Split Capacitor Motor
Effluent Wastewater Removal, Dewatering and Water Transfer
cCSAus Certified | UL Listed

Little Giant® Effluent Pump, Series: 16EH, 90 gpm Maximum, 30 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 2 in FNPT Outlet, 81 ft Maximum Head, 60 ft Maximum Suction Lift, 1 hp, 230 V, 10.2 A, 60 Hz Frequency, 1 ph, 35.1 psi Maximum, 3450 rpm Motor, SJTW-A 20 ft Cord, Cast Iron Non-Clogging Impeller, 142 deg F, Upper and Lower Ball Bearing, 14.1 in L x 9.9 in W Dimensions, Import

Product Details

Little Giant® Effluent Pump, Series: 16EH, 90 gpm Maximum, 30 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 2 in FNPT Outlet, 81 ft Maximum Head, 60 ft Maximum Suction Lift, 1 hp, 230 V, 10.2 A, 60 Hz Frequency, 1 ph, 35.1 psi Maximum, 3450 rpm Motor, SJTW-A 20 ft Cord, Cast Iron Non-Clogging Impeller, 142 deg F, Upper and Lower Ball Bearing, 14.1 in L x 9.9 in W Dimensions, Import

Attributes

Country Of Origin: Mexico
Horsepower: 1 hp
Maximum Flow Rate: 90 gpm
Maximum Head: 81 ft
Outlet Size: 2 in FNPT
Amperage Rating: 10.2 A
Automatic/Non Automatic: Non-Automatic
Bearing Type: Upper and Lower Ball
Cord Type: SJTW-A 20 ft
Dimensions: 14.1 in L x 9.9 in W
Domestic/Import: Import
Frequency Rating: 60 Hz
Impeller Type: Cast Iron Non-Clogging
Maximum Pressure: 35.1 psi
Maximum Suction Lift: 60 ft
Motor Speed: 3450 rpm
Phase: 1
Rated Head: 30 ft
Series: 16EH
Temperature Rating: 142 deg F
Voltage Rating: 230 V

Features

  • Completely submersible, designed for continuous duty
  • HigHead model
  • Handles solids up to 3/4 in Dia
