LITTLE GIANT 553455 EC-400 110V
MFR Part #: 553455
SKU #: 1153848
Brand: Little Giant®
UPC: 010121534551

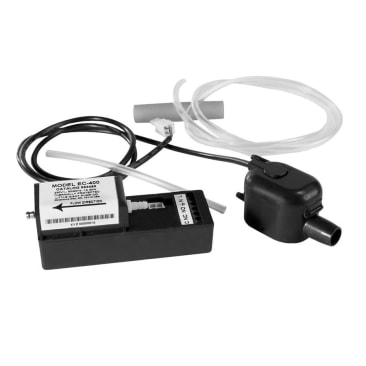

Little Giant® 553455 EC-400 Automatic Condensate Removal Pump, 2 gph Flow Rate, 5/32 in Outlet, 35 ft Shutoff Head, 19 W Power Rating
Removable/Cleanable Inlet Filter to Trap Airborne Particles, Natural Rubber Inlet Tube, 3.2 in x 1.4 in ID Tubing, Spring Clamps and 5/32 in x 1.4 in ID Tubing Outlet Adapter
For removes condensate from ductless mini-split air conditioners and fan-coil equipment
cURus Listed | cCSAus Certified
Product Details
Attributes
Features
Resources
Little Giant® Condensate Removal Pump, Automatic, Series: EC-400, 2 gph, 5/32 in Outlet, 35 ft Shutoff Head, 19 W, 0.24 A 115 V AC 60 Hz, Wall Mount, 4.4 in L x 1.75 W x 1.4 in H
Flow Rate:2 gph
Dimensions:4.4 in L x 1.75 W x 1.4 in H
Electrical Ratings:0.24 A 115 V AC 60 Hz
Mounting Type:Wall
Outlet Size:5/32 in
Power Rating:19 W
Series:EC-400
Shutoff Head:35 ft
Type:Automatic
- Compact condensate drain pump for all types of ductless mini-split air conditioners and other types of cooling equipment such as fan coils wall mount, suspended ceiling, floor mount
- Automatic pump operation controlled by a remote collection reservoir containing a 3-step float/magnet reed switch design for reliable on, off and safety overflow detection
- Can be connected to BMS systems having normally open (NO) or normally closed (NC) circuits
- Designed to drain condensate from air conditioners up to 10 kW or 34000 BTU
- Compact, two-piece designed to fit in air conditioners with limited space
- Low maintenance
- 3 ft suction lift
- Includes removable/cleanable inlet filter to trap airborne particles
- Includes natural rubber inlet tube for connection to air conditioner condensate drain hose
- Includes 3.2 x 1.4 in ID tubing for connection between reservoir and pump inlet
- Includes spring clamps for securing reservoir pump inlet tubing
- Pump unit can be placed inside false ceiling up to 1 m above water source (reservoir) or inside plastic line-set channel or behind wall mounted air handle
Product Details
Little Giant® Condensate Removal Pump, Automatic, Series: EC-400, 2 gph, 5/32 in Outlet, 35 ft Shutoff Head, 19 W, 0.24 A 115 V AC 60 Hz, Wall Mount, 4.4 in L x 1.75 W x 1.4 in H
Attributes
Flow Rate: 2 gph
Dimensions: 4.4 in L x 1.75 W x 1.4 in H
Electrical Ratings: 0.24 A 115 V AC 60 Hz
Mounting Type: Wall
Outlet Size: 5/32 in
Power Rating: 19 W
Series: EC-400
Shutoff Head: 35 ft
Type: Automatic
Features
- Compact condensate drain pump for all types of ductless mini-split air conditioners and other types of cooling equipment such as fan coils wall mount, suspended ceiling, floor mount
- Automatic pump operation controlled by a remote collection reservoir containing a 3-step float/magnet reed switch design for reliable on, off and safety overflow detection
- Can be connected to BMS systems having normally open (NO) or normally closed (NC) circuits
- Designed to drain condensate from air conditioners up to 10 kW or 34000 BTU
- Compact, two-piece designed to fit in air conditioners with limited space
- Low maintenance
- 3 ft suction lift
- Includes removable/cleanable inlet filter to trap airborne particles
- Includes natural rubber inlet tube for connection to air conditioner condensate drain hose
- Includes 3.2 x 1.4 in ID tubing for connection between reservoir and pump inlet
- Includes spring clamps for securing reservoir pump inlet tubing
- Pump unit can be placed inside false ceiling up to 1 m above water source (reservoir) or inside plastic line-set channel or behind wall mounted air handle
