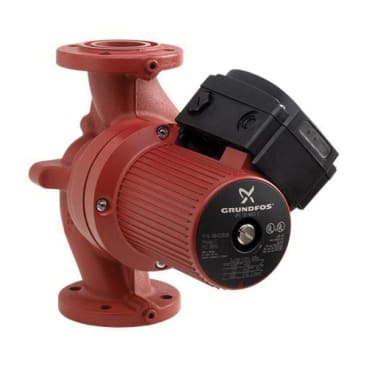

GRUNDFOS 96654377 Image 1

GRUNDFOS 96654377 3/4HP 575V 3PH CI CIRC PUMP UPS53-55/57F

MFR Part #: 96654377
SKU #: 1035578
Brand: Grundfos
UPC: 5700836884946
Grundfos UPS Series UPS 53-55/57 F 96654377 Circulator Pump, 20 to 150 gpm, 610 W, 575 V, 0.48 A, 60 Hz, 3428 rpm Motor
For commercial air conditioning, fire protection, water pressure boosting, drinking water treatment, irrigation and desalination applications
ASTM 35B-40B | cUL Listed

Grundfos Circulator Pump, UPS Series, Model: UPS 53-55/57 F, 20 to 150 gpm Flow Rate, 57 dm Maximum Head, 610 W, 575 V, 0.48 A, 60 Hz, 145 psi Maximum Pressure, 3428 rpm Motor Speed Rating, 3/4 hp, Flanged Connection, 3 ph Phase, 0 to 40 deg C, Iron, 327 mm L x 170 mm W x 302 mm H, Additional Information: F Insulation Class, Stainless Steel Impeller Material

Grundfos UPS 2-speed circulator pumps are designed for circulation of liquids in heating and air conditioning systems and are also used for central and district heating systems. The UPS pumps provide reliable and maintenance-free operation as well as a low noise level and energy consumption.

Product Details

Grundfos Circulator Pump, UPS Series, Model: UPS 53-55/57 F, 20 to 150 gpm Flow Rate, 57 dm Maximum Head, 610 W, 575 V, 0.48 A, 60 Hz, 145 psi Maximum Pressure, 3428 rpm Motor Speed Rating, 3/4 hp, Flanged Connection, 3 ph Phase, 0 to 40 deg C, Iron, 327 mm L x 170 mm W x 302 mm H, Additional Information: F Insulation Class, Stainless Steel Impeller Material

Grundfos UPS 2-speed circulator pumps are designed for circulation of liquids in heating and air conditioning systems and are also used for central and district heating systems. The UPS pumps provide reliable and maintenance-free operation as well as a low noise level and energy consumption.

Attributes

Connection Type: Flanged
Frequency Rating: 60 Hz
HP Rating: 3/4 hp
Material: Iron
Phase: 3 ph
Pressure Rating: 145 psi
Temperature Rating: 0 to 40 deg C

Features

  • Ceramic radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can, bearing plate and rotor cladding
  • Aluminum alloy stator housing
  • Stator with built-in thermal switch

Resources

Full Engineering Drawing
