RED-WHITE 003-52823 1 IP GATE VLV 318A
MFR Part #: 318A 1
SKU #: 0542903
Brand: RWV®
UPC: 620689318069

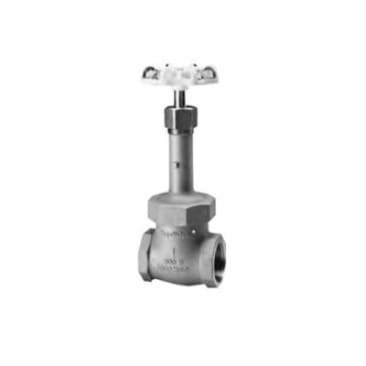

RWV® 318A 1 Standard Gate Valve, 1 in Nominal, Thread End Style, Cast Bronze Body, Handwheel Actuator
MSS-SSP-80 | B62-C83600 Body/Disc | T#2996NA Gland Packing | B86-AG40A Handwheel
Product Details
Attributes
Features
Resources
RWV® Gate Valve, Standard, Series: 318A, 1 in Nominal, Thread End Style, 1000 lb WOG/300 lb WSP Pressure, Handwheel Actuator, 2.6 in Inlet to Outlet Length, 7.64 in Top to Inlet Center, Cast Bronze Body, Brass/Cast Bronze Trim, Plastic/Graphite Gland Packing Softgoods, 3.15 in Diameter Hand Wheel
Body Material:Cast Bronze
Nominal Size:1 in
Actuator Type:Handwheel
End Style:Thread
Inlet to Outlet Length:2.6 in
Top to Inlet Center:7.64 in
Type:Standard
- Rising stem
- Union bonnet
- Solid disc
Product Details
RWV® Gate Valve, Standard, Series: 318A, 1 in Nominal, Thread End Style, 1000 lb WOG/300 lb WSP Pressure, Handwheel Actuator, 2.6 in Inlet to Outlet Length, 7.64 in Top to Inlet Center, Cast Bronze Body, Brass/Cast Bronze Trim, Plastic/Graphite Gland Packing Softgoods, 3.15 in Diameter Hand Wheel
Attributes
Body Material: Cast Bronze
Nominal Size: 1 in
Actuator Type: Handwheel
End Style: Thread
Inlet to Outlet Length: 2.6 in
Top to Inlet Center: 7.64 in
Type: Standard
Features
- Rising stem
- Union bonnet
- Solid disc
