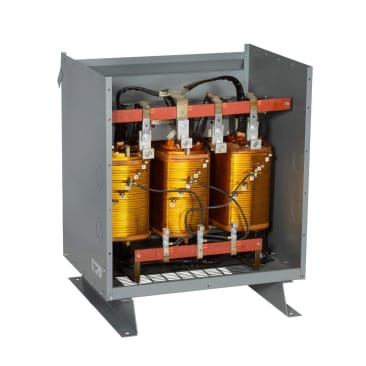

DELTA XFRMR DA6075V 75KVA 600VAC 3-PHASE NEMA 3R GENERAL PURPOSE TRANSFORMER

MFR Part #: DA6075V
SKU #: 1303390
Brand: Approved Vendor
UPC: 62439122450
Delta DA6075V Dry-Type General Purpose Distribution Transformer, Aluminum Winding, 600 VAC Primary, 208Y/120 V AC Secondary, 75 kVA Power Rating, 60 Hz, 3 Phase
CSA Certified|UL Listed

Delta Distribution Transformer, Aluminum Winding, Dry-Type General Purpose, 600 VAC Primary, 208Y/120 V AC Secondary, 75 kVA Power, 60 Hz Frequency, 3 ph, 4 Taps, Floor Mounting, NEMA 3R Enclosure, 150 deg C, Aluminum Housing Material, 31.12 in H x 26.24 in W x 22.84 in D Dimensions

The Commercial series low voltage distribution transformers provide a quality solution for commercial applications while meeting the latest industry standards and efficiency levels. Typical applications include shopping plazas, office buildings, small power distribution, HVAC, lighting and other commercial buildings.

Product Details

Delta Distribution Transformer, Aluminum Winding, Dry-Type General Purpose, 600 VAC Primary, 208Y/120 V AC Secondary, 75 kVA Power, 60 Hz Frequency, 3 ph, 4 Taps, Floor Mounting, NEMA 3R Enclosure, 150 deg C, Aluminum Housing Material, 31.12 in H x 26.24 in W x 22.84 in D Dimensions

The Commercial series low voltage distribution transformers provide a quality solution for commercial applications while meeting the latest industry standards and efficiency levels. Typical applications include shopping plazas, office buildings, small power distribution, HVAC, lighting and other commercial buildings.

Attributes

Dimensions: 31.12 in H x 26.24 in W x 22.84 in D
Enclosure Type: NEMA 3R
Frequency Rating: 60 Hz
Housing Material: Aluminum
Mounting Type: Floor
Phase: 3
Power Rating: 75 kVA
Primary Voltage: 600 V AC
Secondary Voltage: 208Y/120 V AC
Temperature Rating: 150 deg C
Type: Dry-Type General Purpose

Features

  • Meets or exceeds the energy efficiency requirements prescribed by Natural Resources Canada (NRCan) SOR/2018-201, Amd. 14 (NRCan 2019) and the Ontario Green Energy Act
  • Building on our years of experience in engineering and design of transformers we have created a product that is guaranteed to provide high efficiency in an economical package
